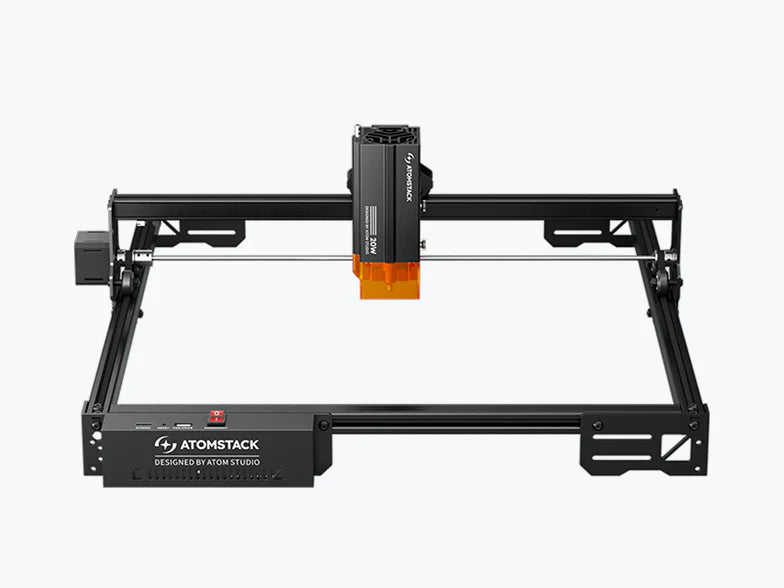

AtomStack A20 Pro V2

20W Professional Diode Laser Engraver & Cutter

The AtomStack A20 Pro V2 is a versatile 20W diode laser engraver and cutter designed for makers, hobbyists, and small businesses who need reliable performance across a wide range of materials. Featuring an advanced independently-developed motherboard and unique dot compression technology that delivers an ultra-fine 0.08 × 0.10 mm laser spot, the A20 Pro V2 produces crisp, detailed engraving on wood, leather, anodized aluminum, coated metals, 304 mirror stainless steel, ceramics, dark glass, and more. Its 20W laser output cuts through 17 mm wood and 15 mm black acrylic in a single pass.

With a spacious 400 × 365 mm working area and engraving speeds up to 400 mm/s, the A20 Pro V2 handles everything from detailed artwork to production-scale batch jobs. The integrated linear guide rail system ensures smooth, precise motion while the aluminum alloy frame provides rock-solid stability. Built-in limit switches and a cross-line positioning light deliver 0.01 mm engraving accuracy for pinpoint alignment. For safety, it includes flame detection (with Z2 slider), a 15° tip-over alarm, and resume engraving after power loss. The A20 Pro V2 connects via USB and Wi-Fi 2.4G, and works seamlessly with LightBurn, LaserGRBL, AtomStack Studio, and the AtomStack mobile app.

Key Features

✓ 20W Diode Laser Output: High-energy cutting and precision engraving across a wide range of materials
✓ Ultra-Fine 0.08 × 0.10 mm Spot: Unique dot compression technology for sharp, intricate detail
✓ Cuts 17 mm Wood in One Pass: Powerful enough for thick wood, 15 mm black acrylic, and 0.01 mm metal engraving
✓ Large 400 × 365 mm Working Area: Spacious surface for signs, batch work, and larger projects
✓ 400 mm/s Engraving Speed: Fast processing for high-volume production and complex designs
✓ 0.01 mm Engraving Accuracy: Built-in limit switches and cross-line light for precise alignment
✓ Integrated Linear Guide Rails: Smooth, accurate motion with extended machine lifespan
✓ Full Aluminum Alloy Frame: Durable, rigid construction for consistent results
✓ USB + Wi-Fi 2.4G Connectivity: Flexible desktop and wireless control options
✓ Mobile App Support: Control from your phone via AtomStack App (Android & iOS)
✓ Resume Engraving: Automatically picks up where it left off after power interruption
✓ Advanced Safety Features: Flame detection (with Z2 slider), 15° tip-over alarm with buzzer, and removable magnetic laser cover

Technical Specifications

Product Name	AtomStack A20 Pro V2 Laser Engraver
Laser Power	20W Diode Laser
Laser Wavelength	455 ± 5 nm
Spot Size	0.08 × 0.10 mm (compressed)
Working Area	400 × 365 mm (15.75 × 15.4 in)
Max Engraving Speed	400 mm/s
Engraving Accuracy	0.01 mm
Max Wood Cutting	17 mm in one pass
Max Acrylic Cutting	15 mm black acrylic
Max Metal Engraving	0.01 mm depth
Focus Mode	Manual Focus (Fixed Focus Laser)
Input Power	120W
Product Structure	Open Frame Laser (Guide Rails)
Product Dimensions	178 × 254 × 178 mm (7 × 10 × 7 in)
Net Weight	6 kg (13.2 lbs)
Input Voltage	100–240V AC, 50/60Hz
Connectivity	USB / Wi-Fi 2.4G
Supported Software	LightBurn / LaserGRBL / AtomStack Studio / AtomStack App
Operating System	Windows / macOS / Android / iOS
Supported Formats	JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
Cross Positioning	Yes
Resume Engraving	Yes
Tip-Over Alarm	Yes (>15°, buzzer alert)
Flame Detection	Yes (requires Z2 Z-axis slider)
Laser Protective Cover	Removable magnetic cover
Certifications	IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA
Engraving Materials	Wood, bamboo, cardboard, plastic, leather, PCB, anodized aluminum, coated metals, 304 stainless steel, dark glass, ceramics, cotton, slate
Cutting Materials	Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, thin plastic sheets, sponge

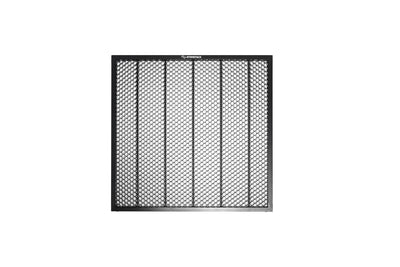

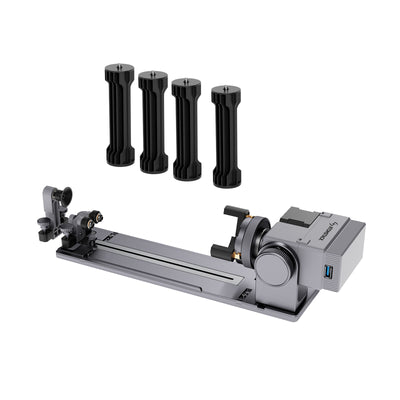

Compatible Accessories	F60/F80 Air Assist, F2N/F4N Honeycomb, FB2 Enclosure, R6/R8 Rotary, Z2 Z-axis Slider
