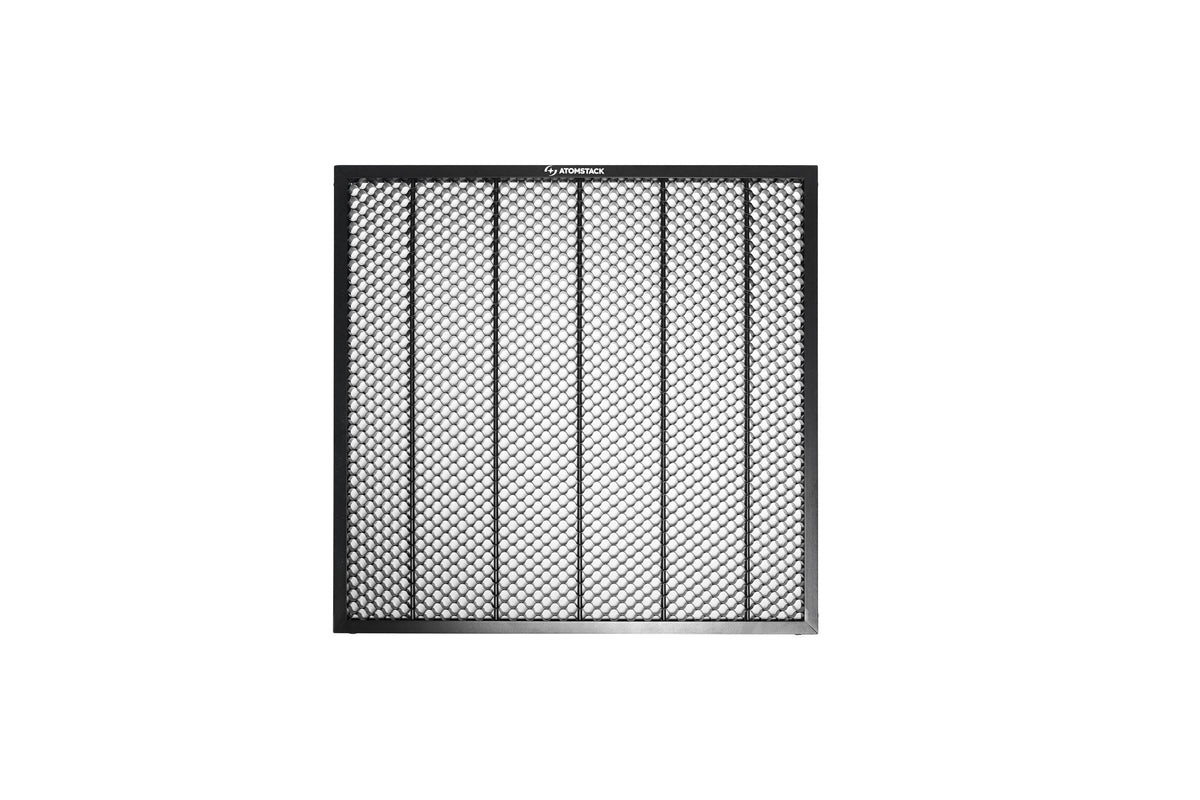

AtomStack F4N Honeycomb
400 × 400 mm Laser Engraver Bed with Cutting Mat
The AtomStack F4N Honeycomb is a large-format laser cutting and engraving work surface engineered for makers who need more room. With a spacious 400 × 400 mm honeycomb working area in a 425 × 425 mm frame, it accommodates bigger projects, full-size signs, and production batches. Built from high-strength steel with precision CNC machining, the F4N provides a perfectly flat, rigid surface that resists deformation under heavy use—exactly what's needed for consistent, professional results.
The 10 mm honeycomb cells are scientifically optimized for rapid heat dissipation, keeping cutting edges clean and preventing material overheating. The included SUS304 stainless steel cutting mat (400 × 400 × 0.5 mm) provides an additional barrier between the laser and your work surface, protecting your desk from laser damage. Integrated adjustable metal clamps keep materials firmly locked in position, and the detachable frame design makes cleaning and maintenance simple. The F4N is compatible with a wide range of laser engravers including CO₂, diode, and fiber machines.
What's In The Box
- F4N Honeycomb Panel × 1
- SUS304 Stainless Steel Cutting Mat × 1
- Positioning Pins × 16
- Platens × 6
- Raising Rubber Pads × 4
- User Manual × 1
FAQ's
Frequently Asked Questions
What is the working area of the F4N Honeycomb?
The F4N has a 400 × 400 mm honeycomb working area, with an overall frame size of approximately 420 × 410 mm and a height of 22.5 mm.
How does the F4N improve laser cutting?
The honeycomb structure promotes rapid heat dissipation and smoke evacuation underneath the workpiece, helping produce cleaner edges and reducing the chance of excessive heat buildup.
Does the F4N include material-holding accessories?
Yes. AtomStack includes four anti-slip pads and six platens to help stabilise and secure materials during engraving and cutting.
Can the F4N be removed or repositioned easily?
Yes. Unlike some of AtomStack's fixed honeycomb designs, the F4N is designed for setup flexibility and detachability, making it easier to remove or reposition when needed.
What is the working area of the F4N Honeycomb?
The F4N has a 400 × 400 mm honeycomb working area, with an overall frame size of approximately 420 × 410 mm and a height of 22.5 mm.
How does the F4N improve laser cutting?
The honeycomb structure promotes rapid heat dissipation and smoke evacuation underneath the workpiece, helping produce cleaner edges and reducing the chance of excessive heat buildup.
Does the F4N include material-holding accessories?
Yes. AtomStack includes four anti-slip pads and six platens to help stabilise and secure materials during engraving and cutting.
Can the F4N be removed or repositioned easily?
Yes. Unlike some of AtomStack's fixed honeycomb designs, the F4N is designed for setup flexibility and detachability, making it easier to remove or reposition when needed.
