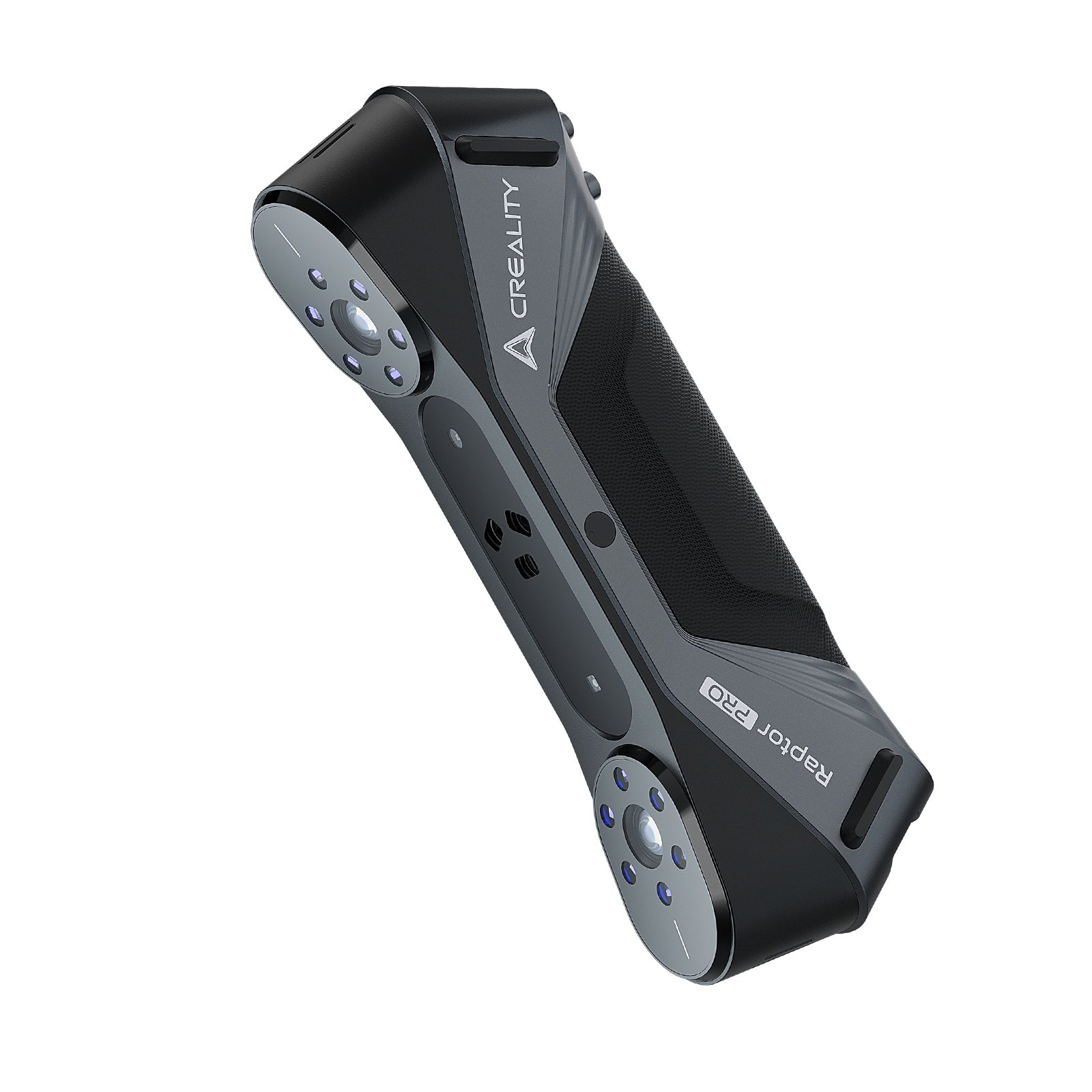

Creality Raptor PRO
3D Scanner

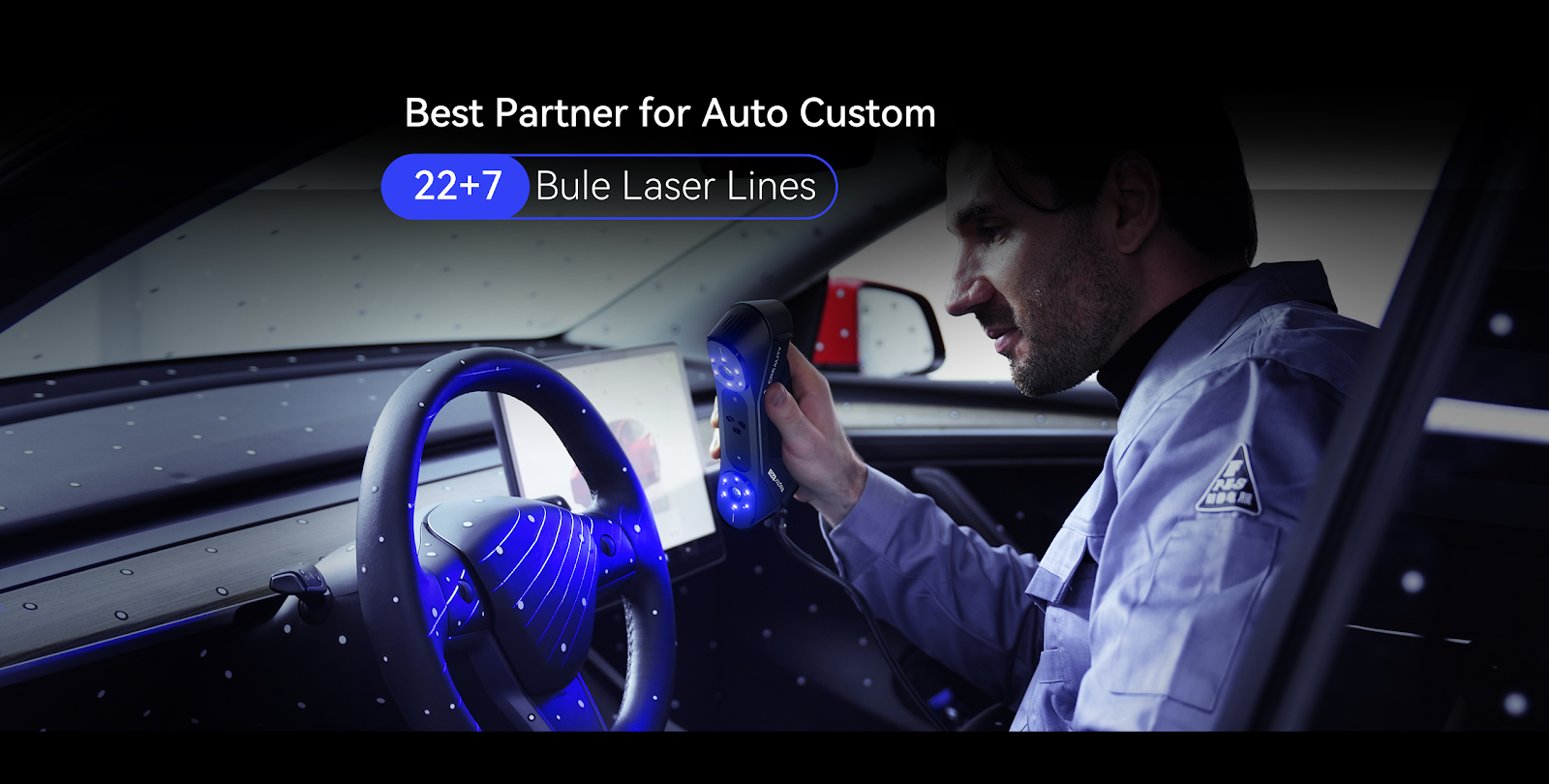

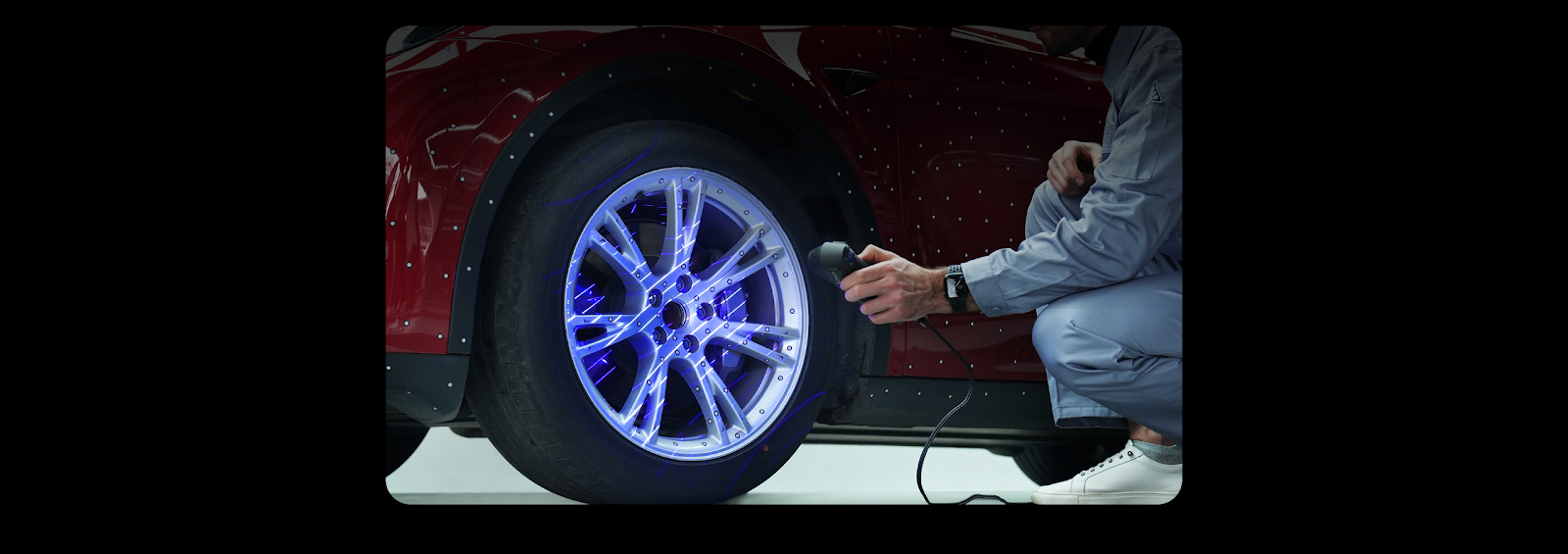

The Creality Raptor Pro is a high-speed dual-mode 3D scanner designed as the ultimate partner for automotive customization and professional scanning applications. It features 22 cross laser lines and 7 parallel laser lines combined with NIR infrared structured light, providing three distinct scanning modes that can be freely switched for maximum versatility.

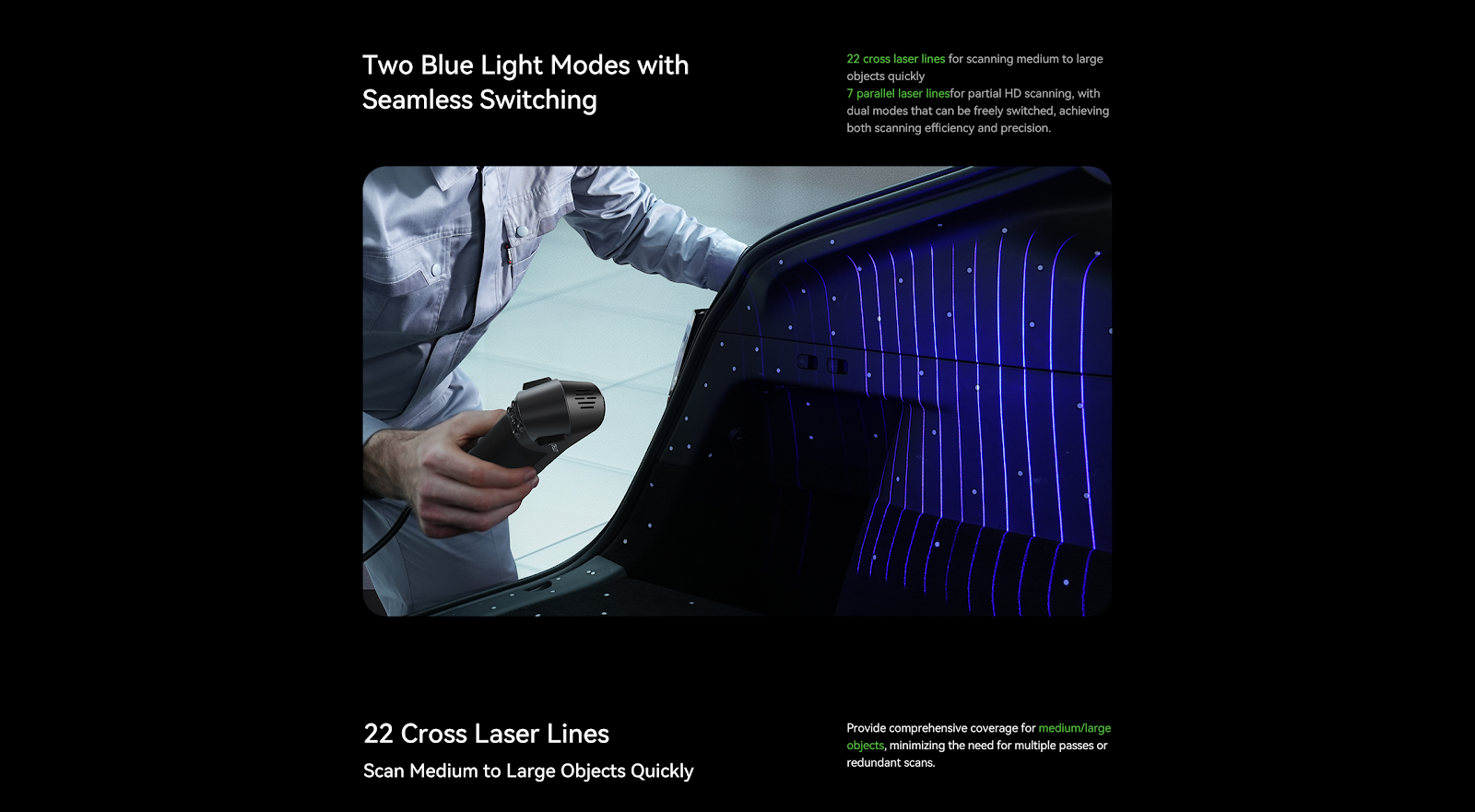

The 22 cross blue laser lines enable fast scanning of medium to large objects at 660,000 points per second, while the 7 parallel laser lines deliver partial HD scanning with each line as fine as 0.1mm for capturing sharper edges and finer details. The NIR structured light mode handles full-body and large-scale scanning at up to 3,580,000 measurements per second.
With volumetric accuracy of 0.02mm + 0.08mm/m and scanning frame rates of up to 60fps in laser mode and 30fps in NIR mode, the Raptor Pro delivers reliable precision and accurate detail. It supports scanning objects ranging from 5mm to 4000mm, covering everything from small components and engineering parts to human bodies and full vehicles.

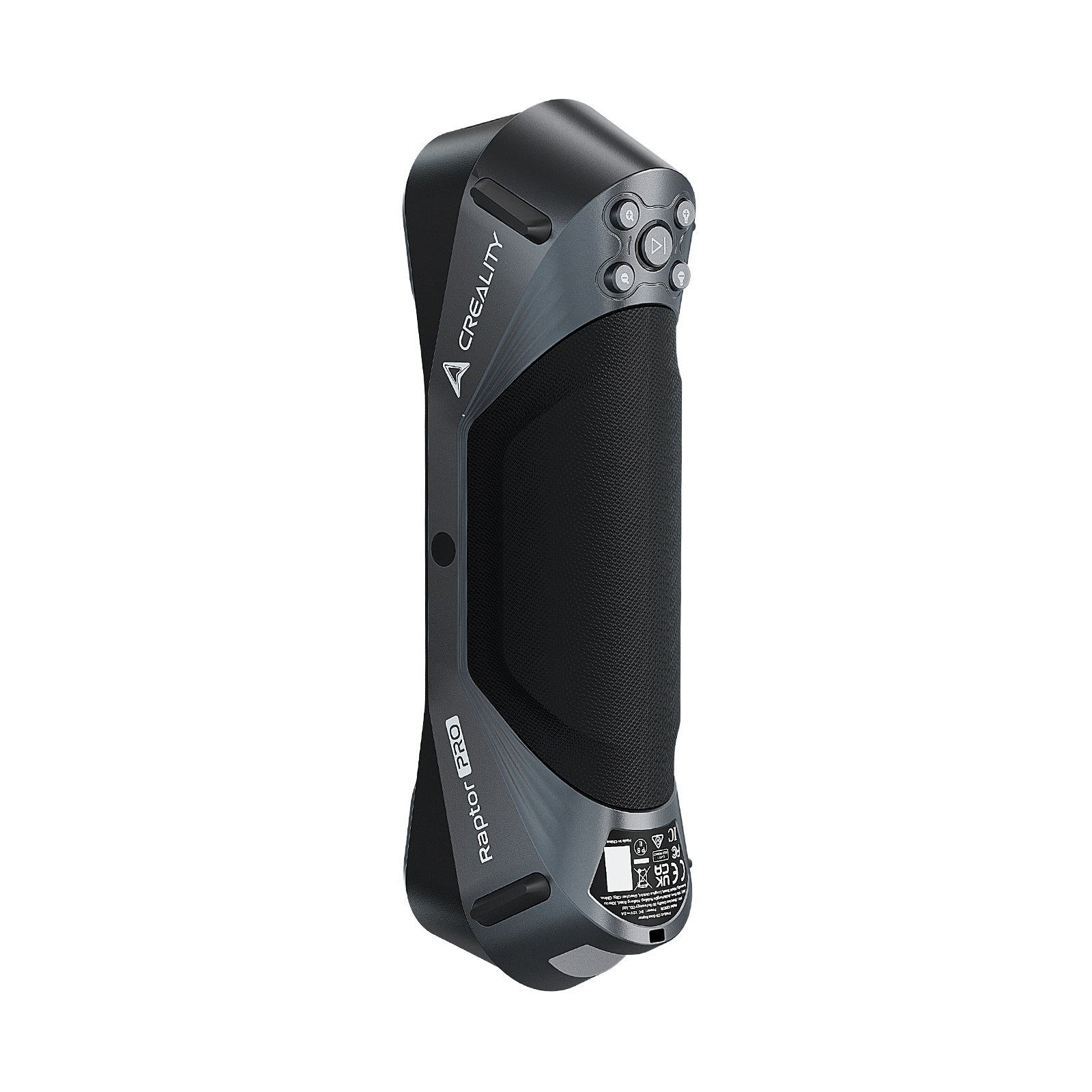

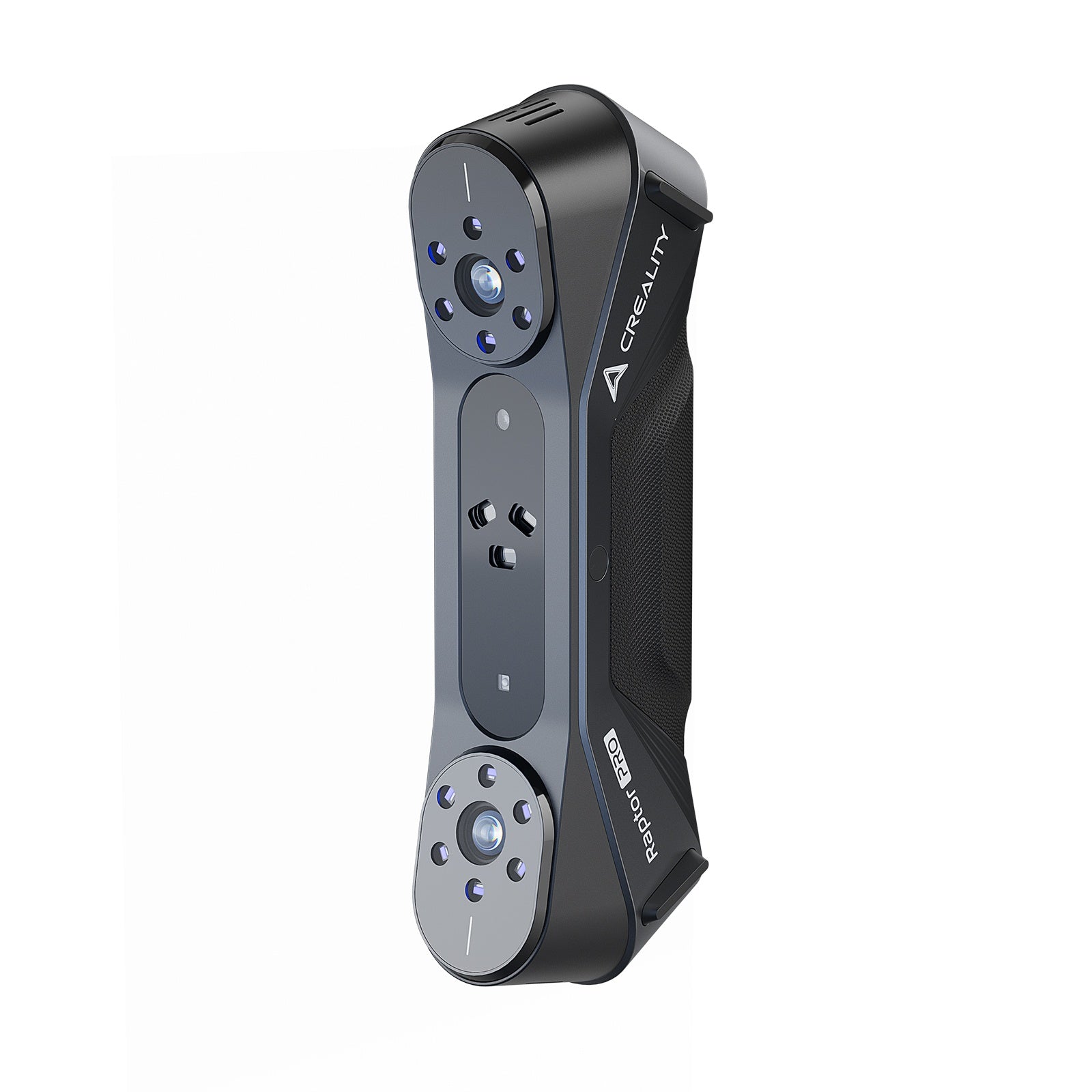

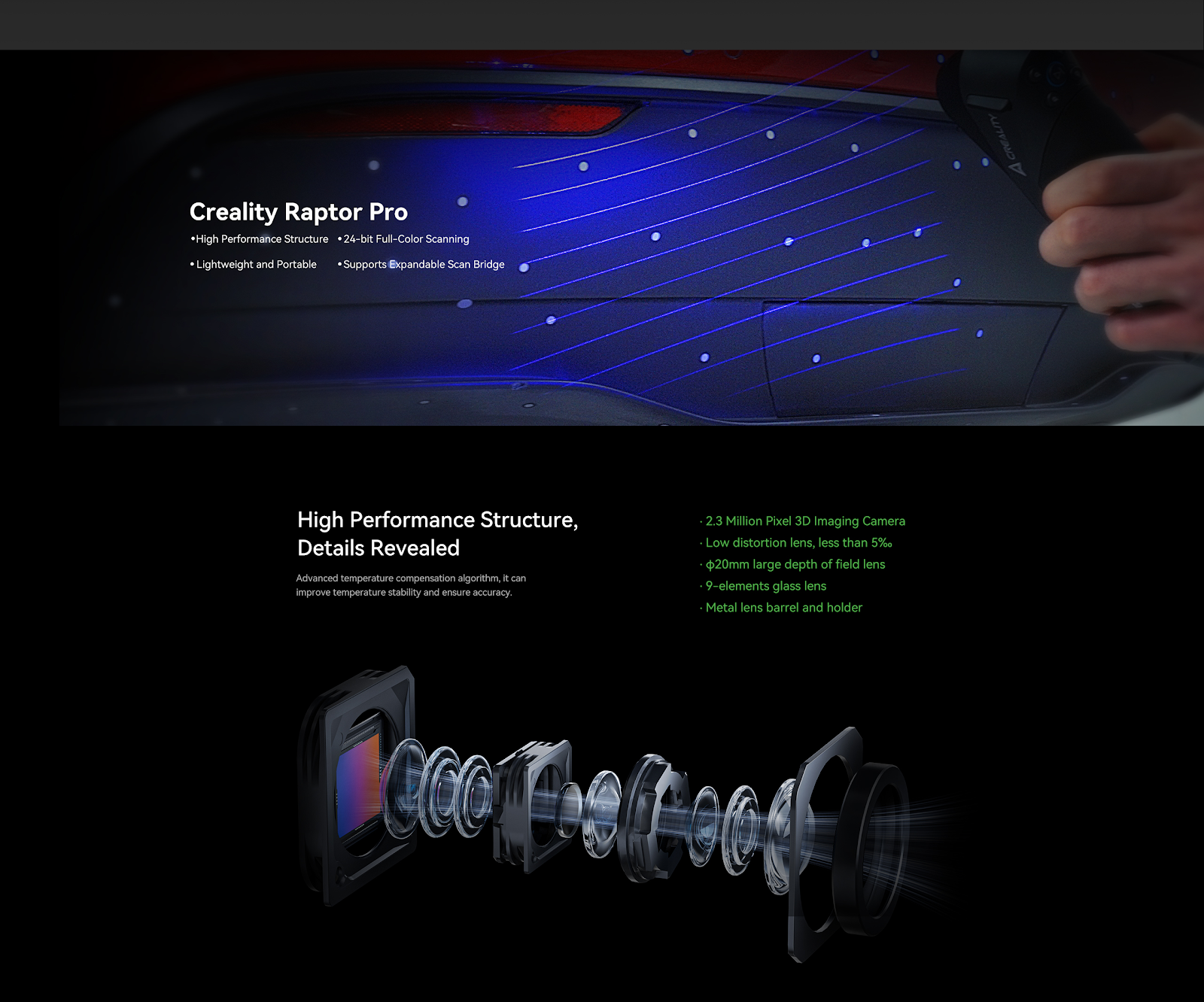

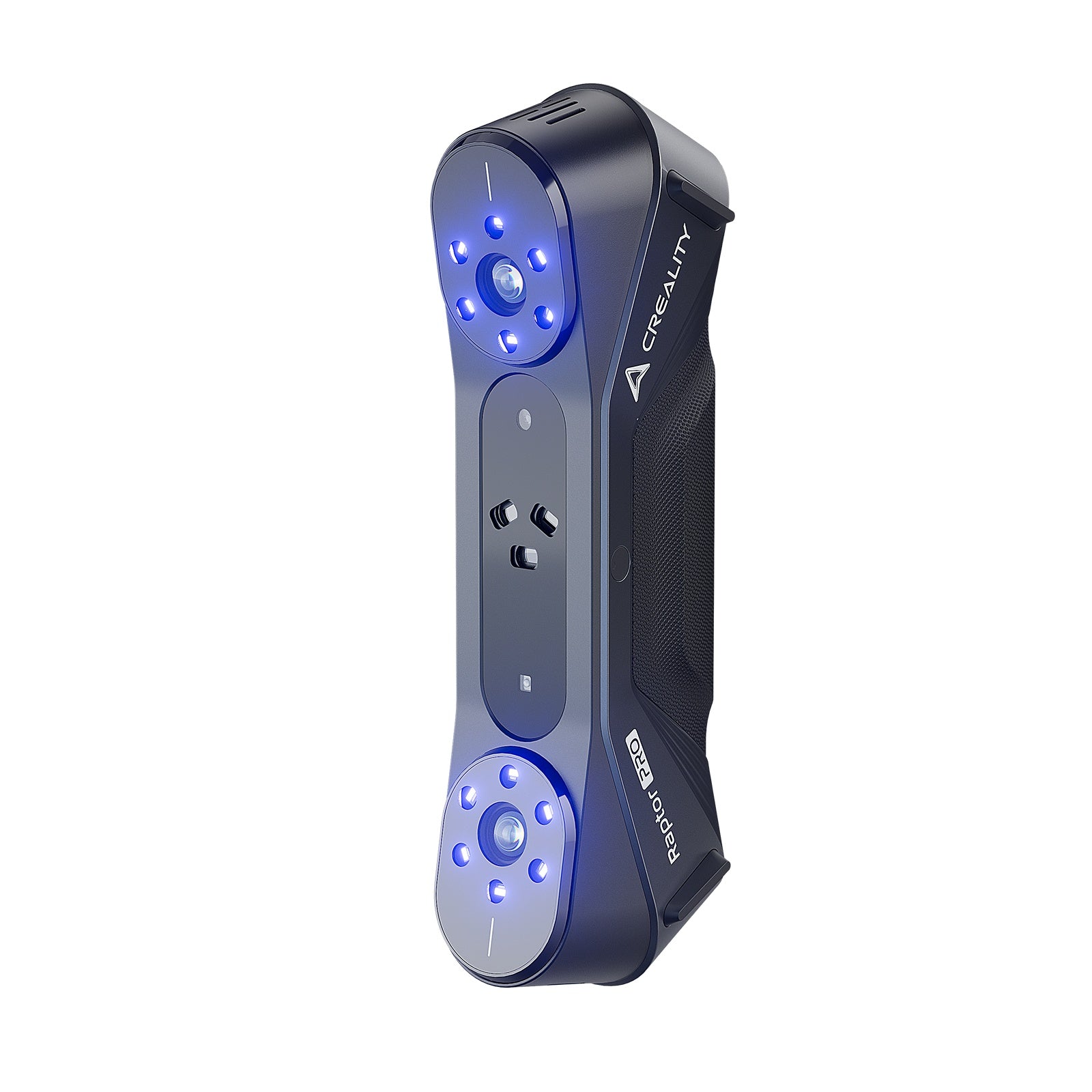

The scanner features a high-performance optical structure with a 2.3 million pixel 3D imaging camera, low distortion lens (less than 1%), and 620mm large depth of field lens with 9 glass elements in a metal barrel. At only 405g, it's lightweight and portable with an anti-slip sleeve and detachable lanyard. Additional features include 24-bit full-color scanning in all modes, anti-shaking technology, outdoor scanning capability, and the ability to scan black/metal objects without sprays.
Features

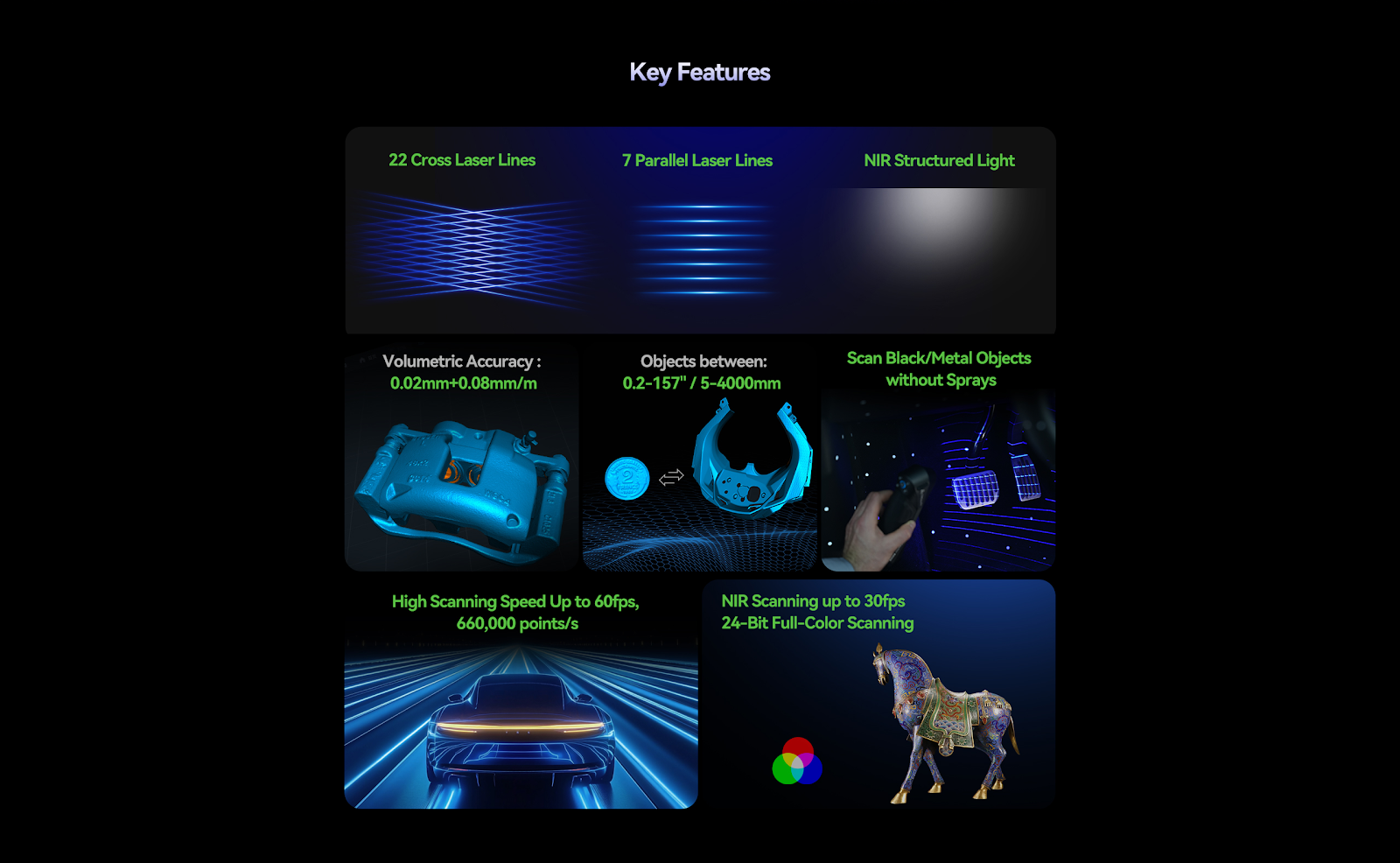

Key Features
- ✓ 22 cross laser lines + 7 parallel laser lines + NIR structured light — three scanning modes in one device
- ✓ High-quality scanning at 660,000 points/s with 22 cross blue laser lines

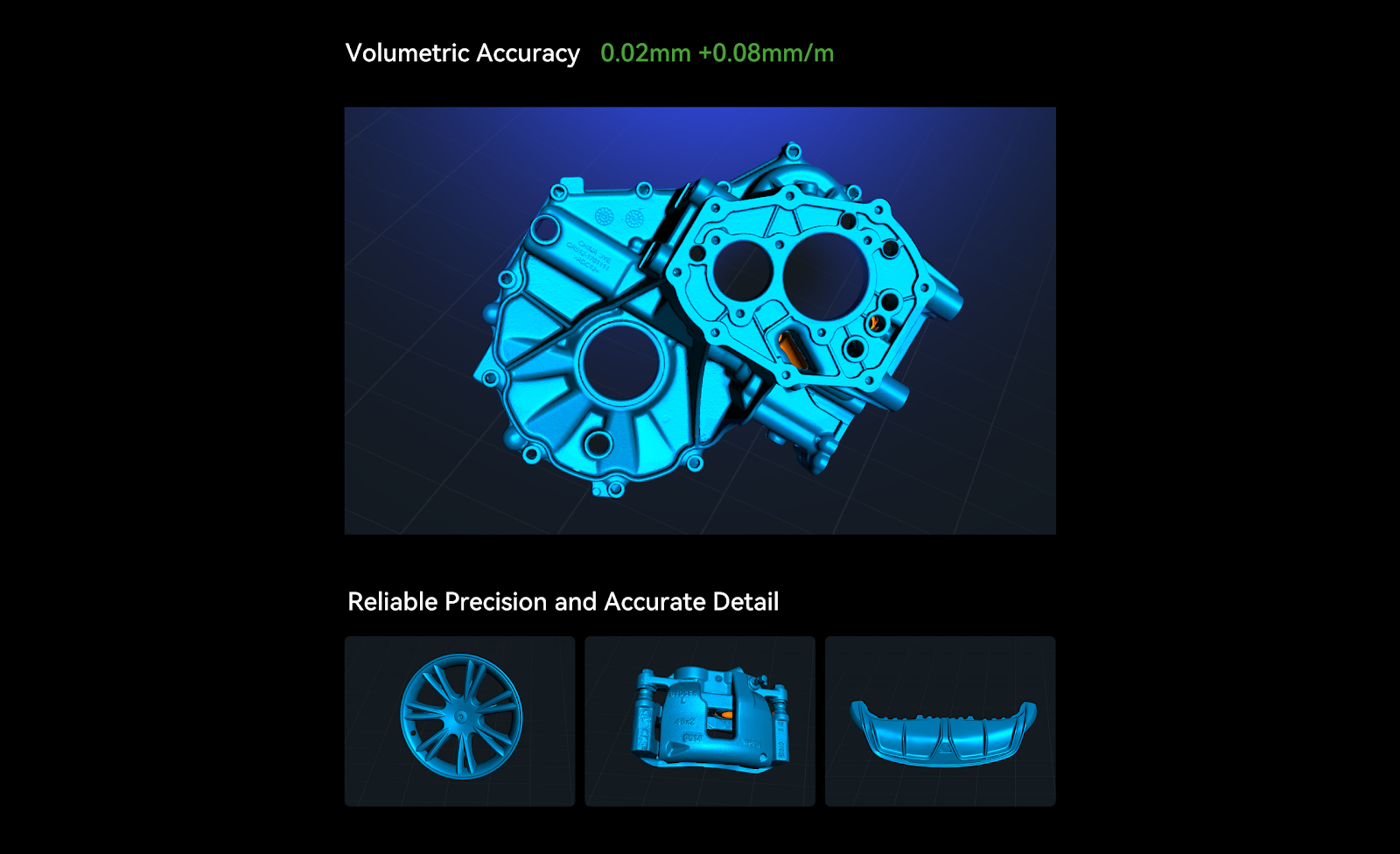

- ✓ Volumetric accuracy of 0.02mm + 0.08mm/m (blue laser mode)
- ✓ Up to 0.02mm single-point accuracy in blue laser mode

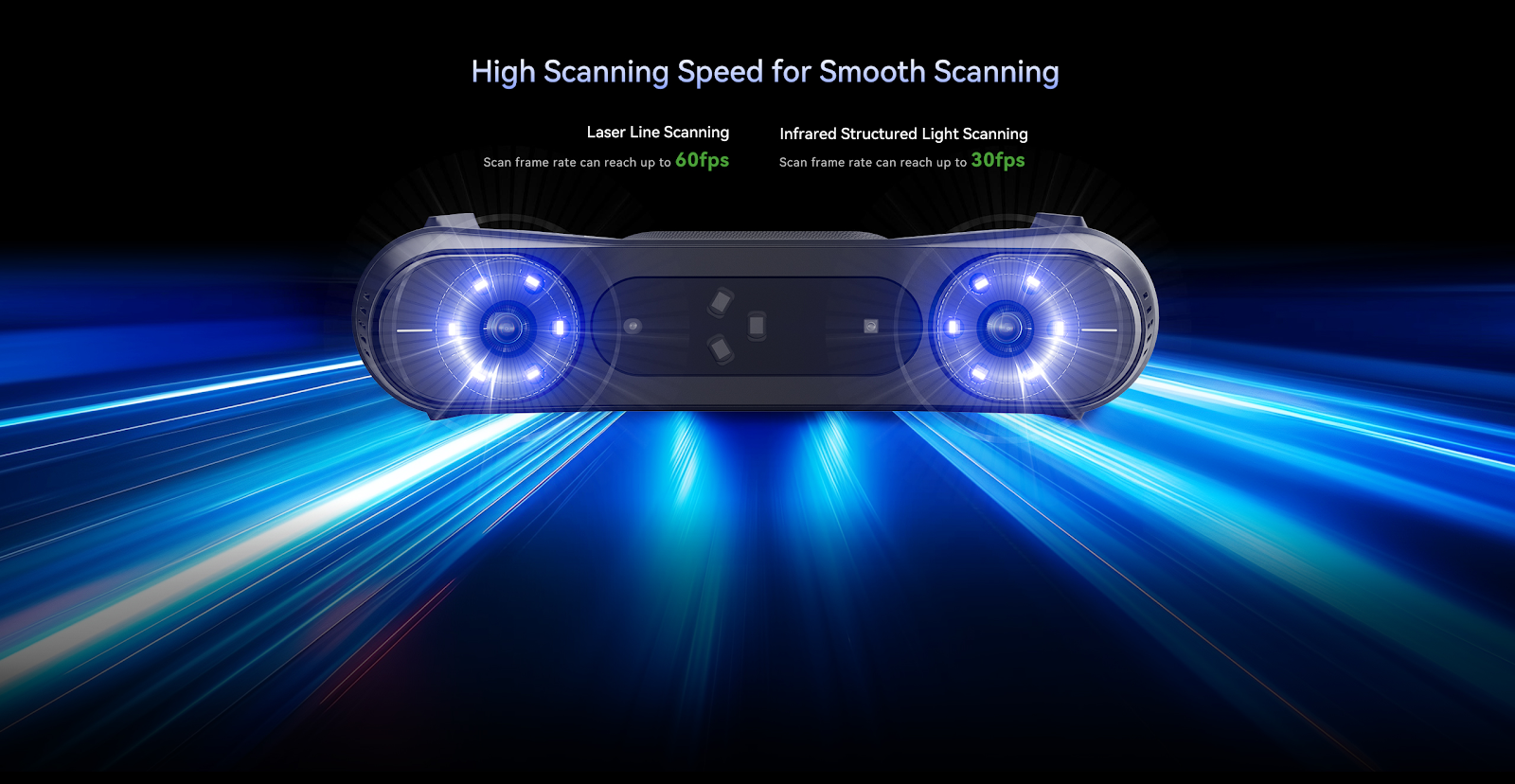

- ✓ High scanning speed: up to 60fps (laser line) and 30fps (NIR structured light)

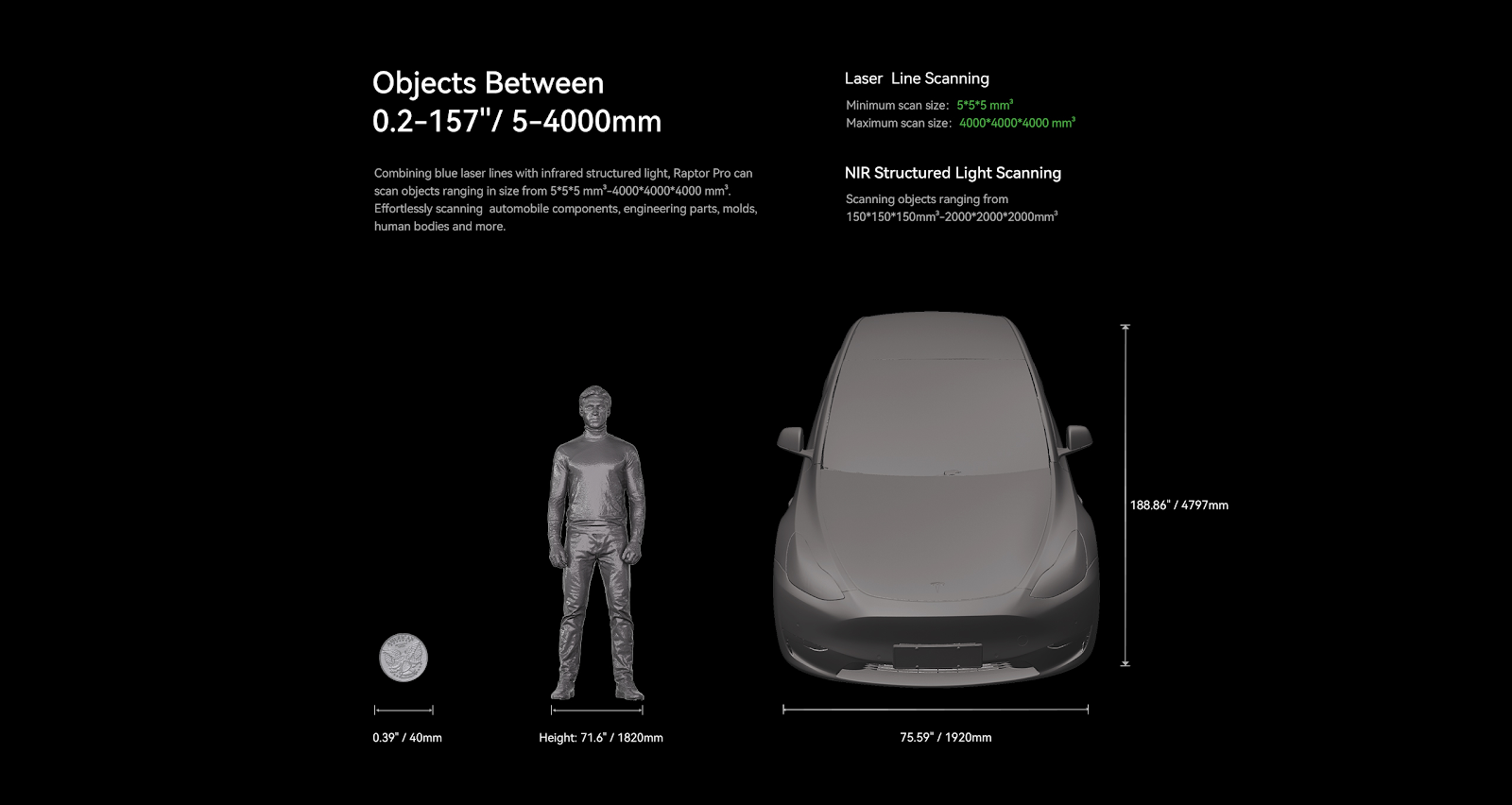

- ✓ Scan objects from 0.2" to 157" (5mm to 4000mm) — small parts to full vehicles
- ✓ 24-bit full-color scanning in all modes with high-resolution RGB camera
- ✓ Scan black/metal objects without sprays
- ✓ Outdoor scanning support up to 50,000 lux (blue laser)
- ✓ Anti-shaking with One-Shot 3D imaging technology for stable tracking

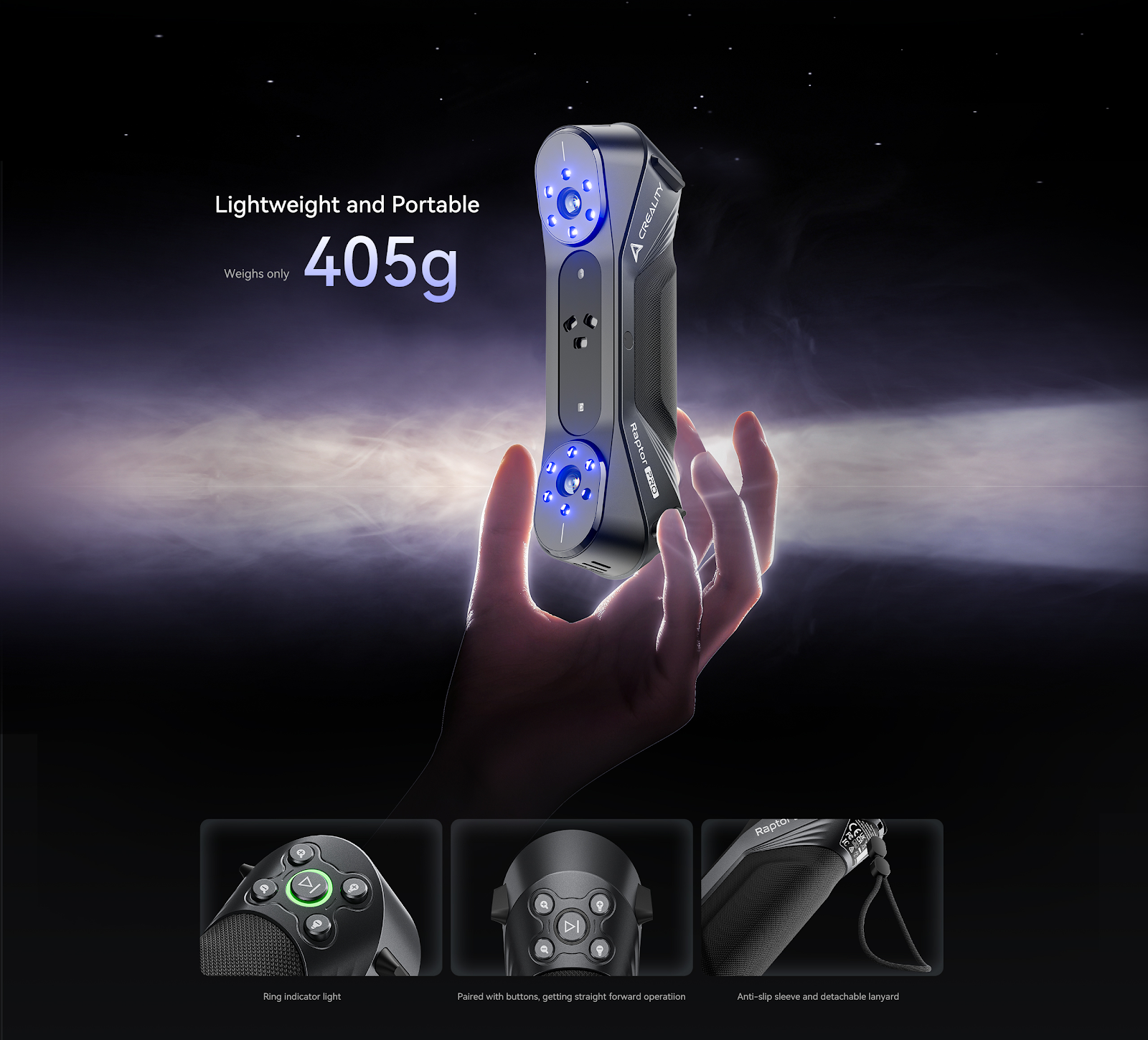

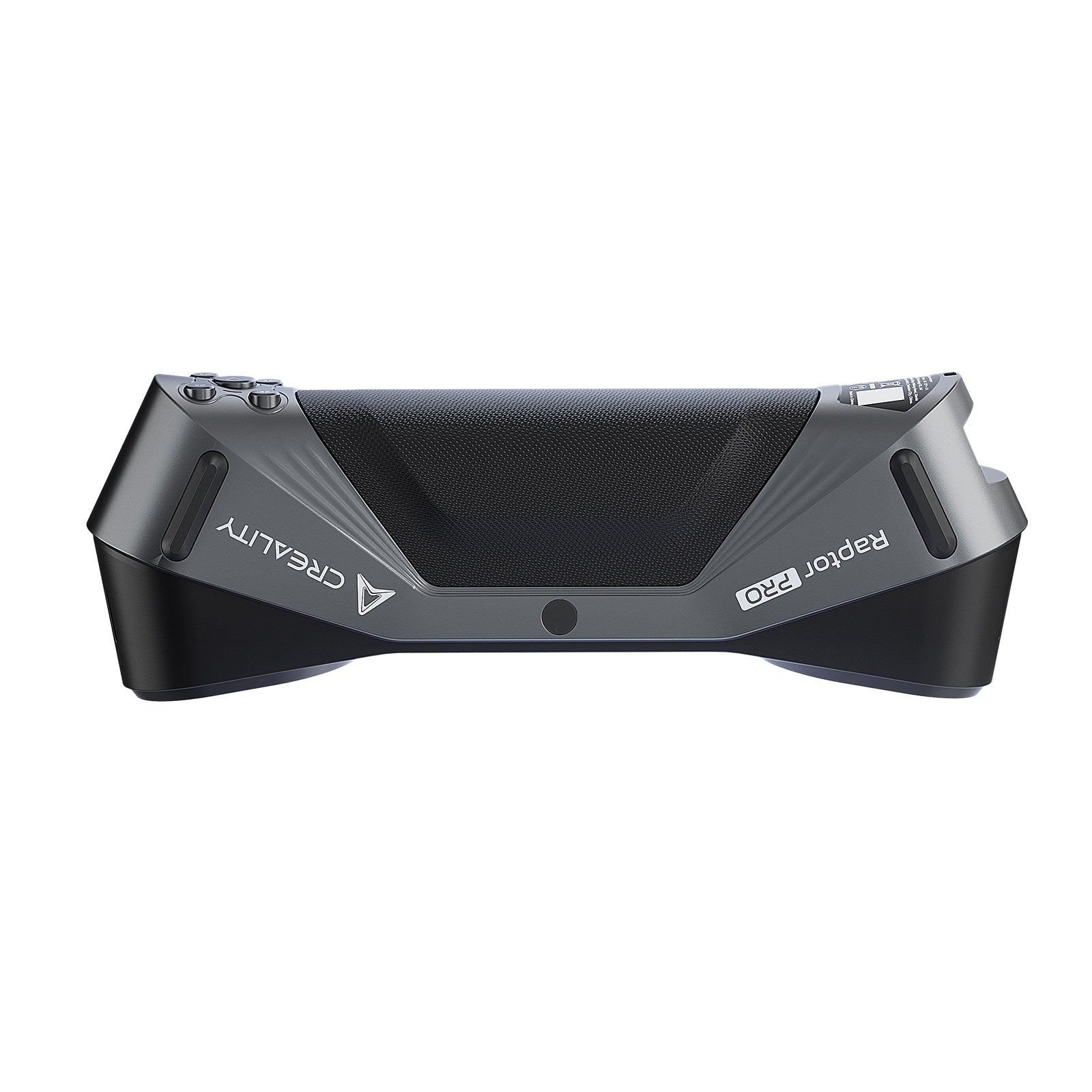

- ✓ Lightweight and portable at only 405g
- ✓ 2.3 million pixel 3D imaging camera with 9-element glass lens
- ✓ Markerless scanning with unique face & body algorithm

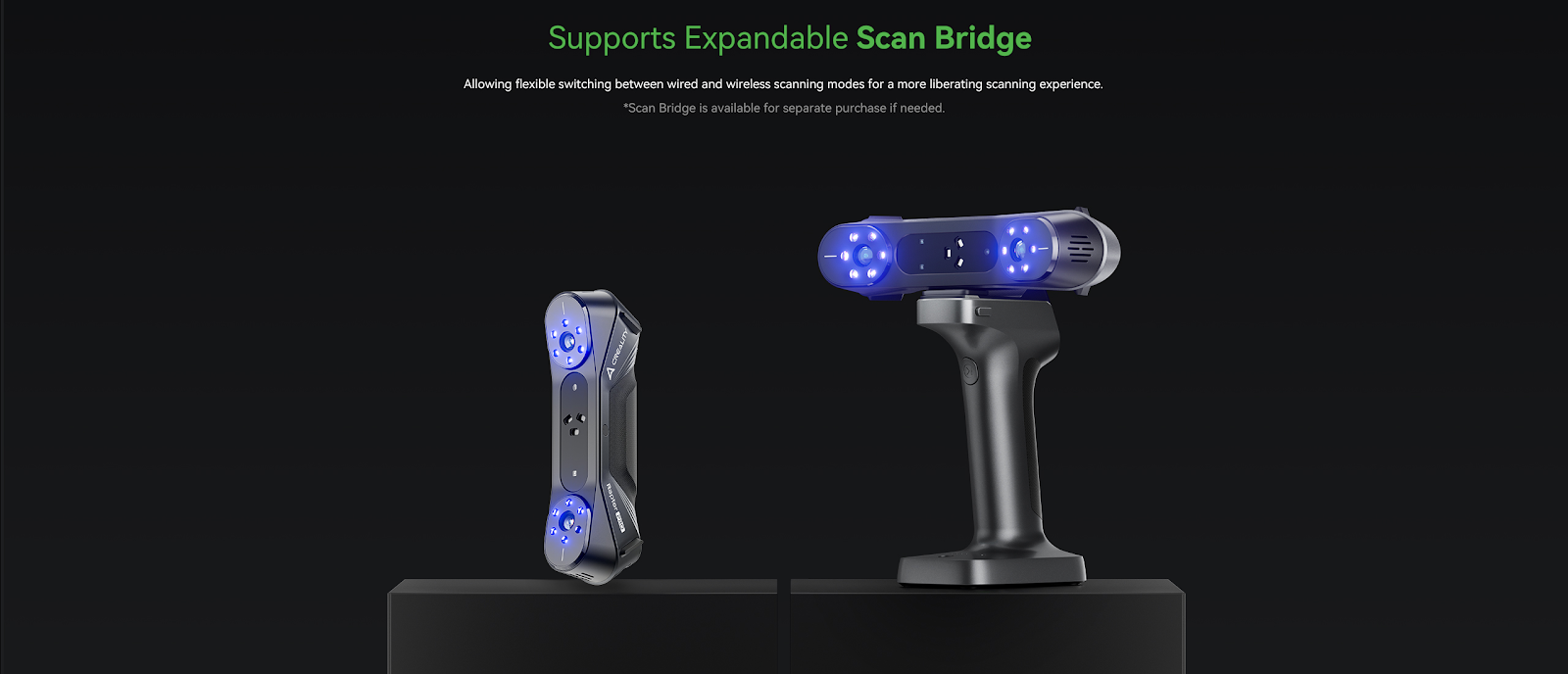

- ✓ Supports expandable Scan Bridge for wireless scanning
- ✓ Peaceful scanning with built-in LED supplementary lights
Specs

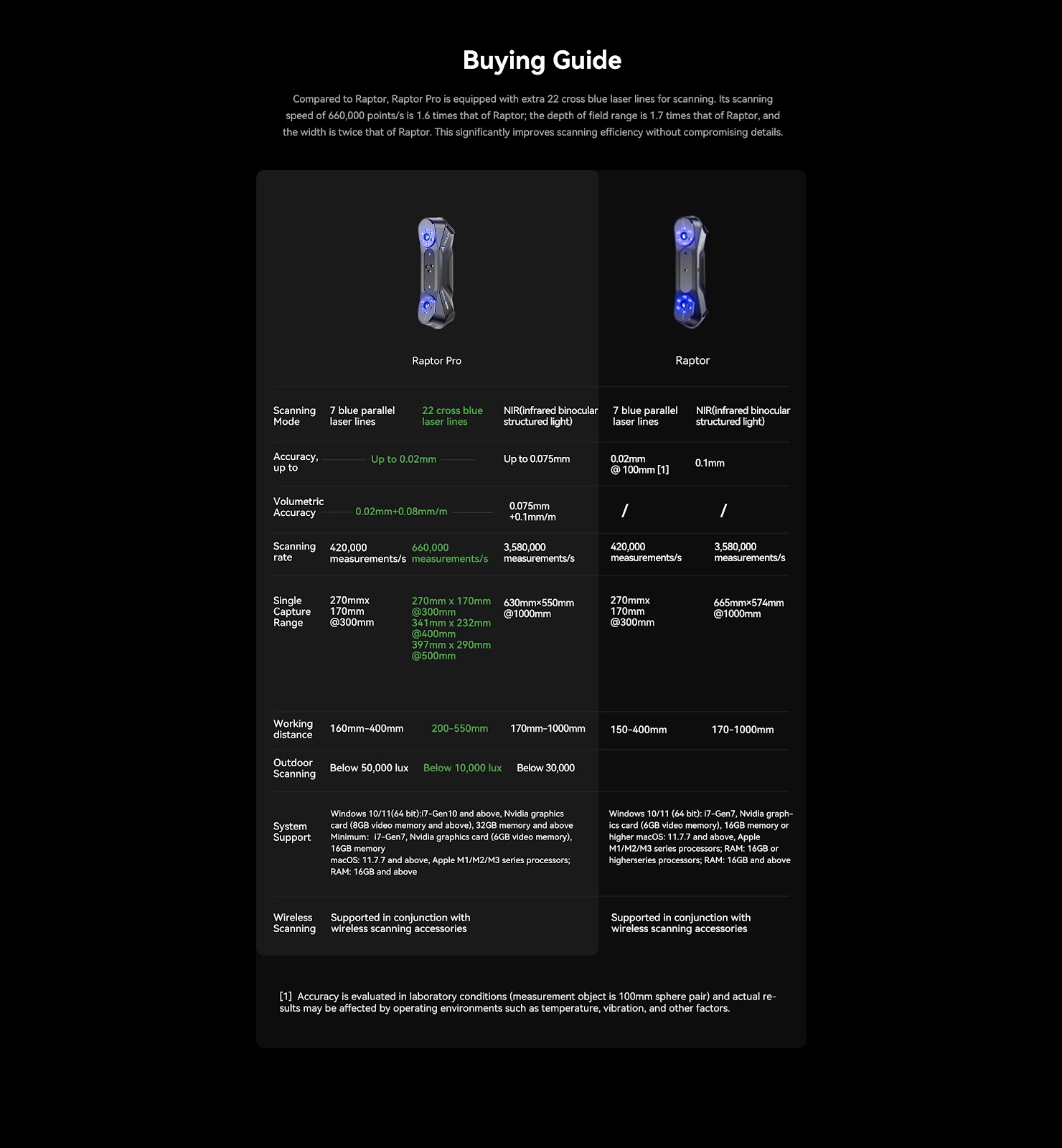

Technical Specifications
| Scanning Mode | 7 blue parallel laser lines + 22 cross blue laser lines + NIR (Infrared binocular structured light) |
| Accuracy (Blue Laser) | Up to 0.02mm |
| Accuracy (NIR) | Up to 0.075mm |
| Volumetric Accuracy (Blue Laser) | 0.02mm + 0.08mm/m |
| Volumetric Accuracy (NIR) | 0.075mm + 0.1mm/m |
| Scanning Rate (7 Parallel Blue) | 420,000 measurements/s |
| Scanning Rate (22 Cross Blue) | 660,000 measurements/s |
| Scanning Rate (NIR) | 3,580,000 measurements/s |
| Scanning Frame Rate | Up to 60fps (Laser) / Up to 30fps (NIR) |
| Single Capture Range (Blue @300mm) | 270mm × 170mm |
| Single Capture Range (Cross @300mm) | 270mm × 170mm |
| Single Capture Range (Cross @400mm) | 341mm × 232mm |
| Single Capture Range (Cross @500mm) | 397mm × 290mm |
| Single Capture Range (NIR @1000mm) | 630mm × 550mm |
| Scan Object Size Range | 0.2" – 157" / 5mm – 4000mm |
| Working Distance (Blue) | 160mm – 400mm |
| Working Distance (Cross Blue) | 200mm – 550mm |
| Working Distance (NIR) | 170mm – 1000mm |
| Outdoor Scanning (Blue) | Below 50,000 lux |
| Outdoor Scanning (Cross Blue) | Below 10,000 lux |
| Outdoor Scanning (NIR) | Below 30,000 lux |
| Color Scanning | 24-bit Full-Color in all modes |
| 3D Imaging Camera | 2.3 Million Pixel |
| Lens | Low distortion (<1%), 9-element glass, metal barrel |
| Depth of Field | 620mm |
| Weight | 405g |
| Wireless Scanning | Supported with wireless scanning accessories (Scan Bridge sold separately) |
| System Requirements (Recommended) | Windows 10/11 (64-bit) i7-Gen10+, Nvidia GPU (8GB VRAM), 32GB RAM |
| System Requirements (Minimum) | i7-Gen7, Nvidia GPU (6GB VRAM), 16GB RAM |
| macOS Support | macOS 11.7.7+, Apple M1/M2/M3 processors, 16GB RAM |

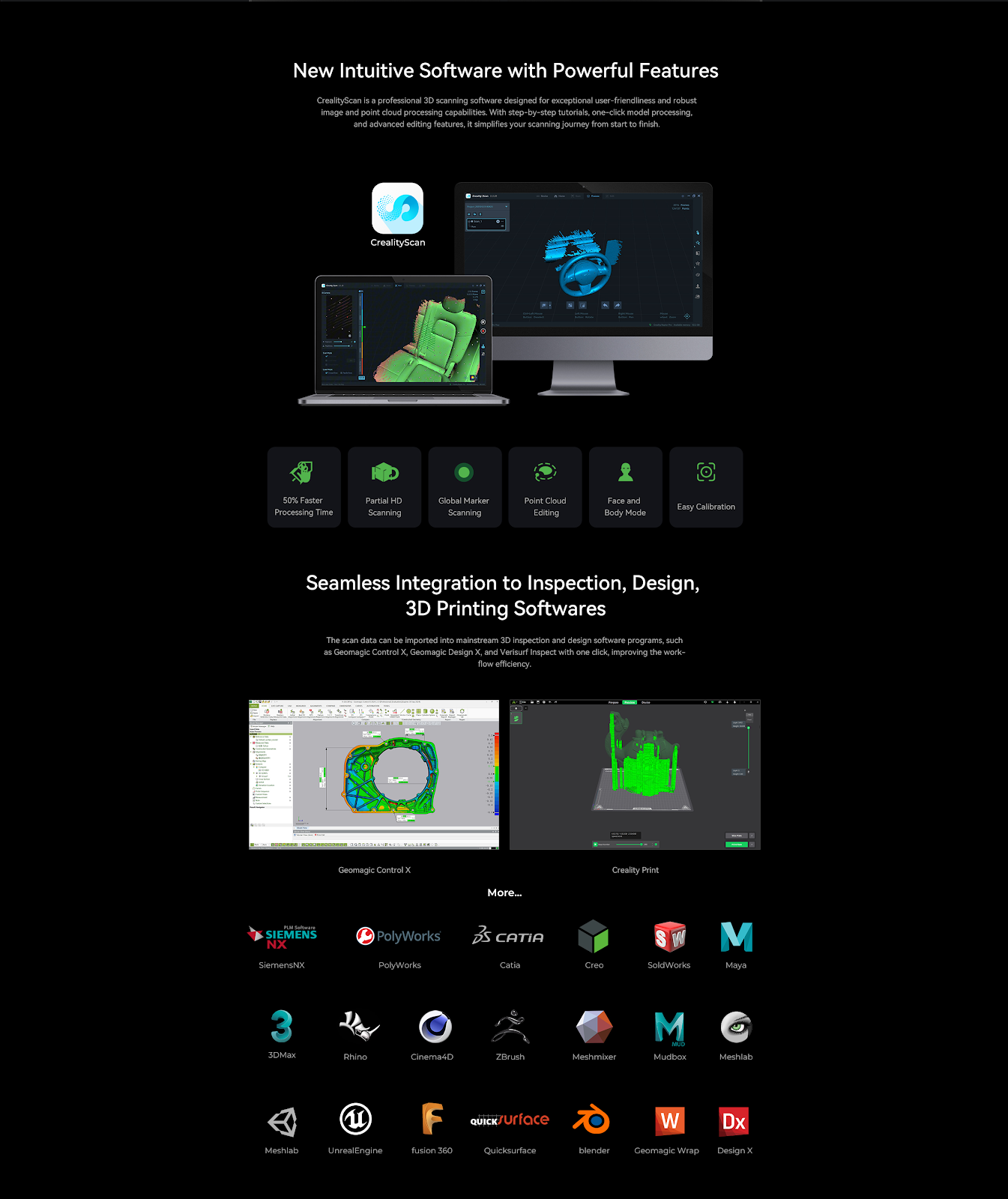

| Compatible Software | CrealityScan, Geomagic Control X, Geomagic Design X, RhinoPart, and more |
What's In The Box
- Creality Raptor Pro 3D Scanner
- USB Cable
- Power Adapter
- Anti-slip Sleeve
- Detachable Lanyard
- Quick Start Guide
