Creality Sermoon P1
Creality Sermoon P1
3D Scanner

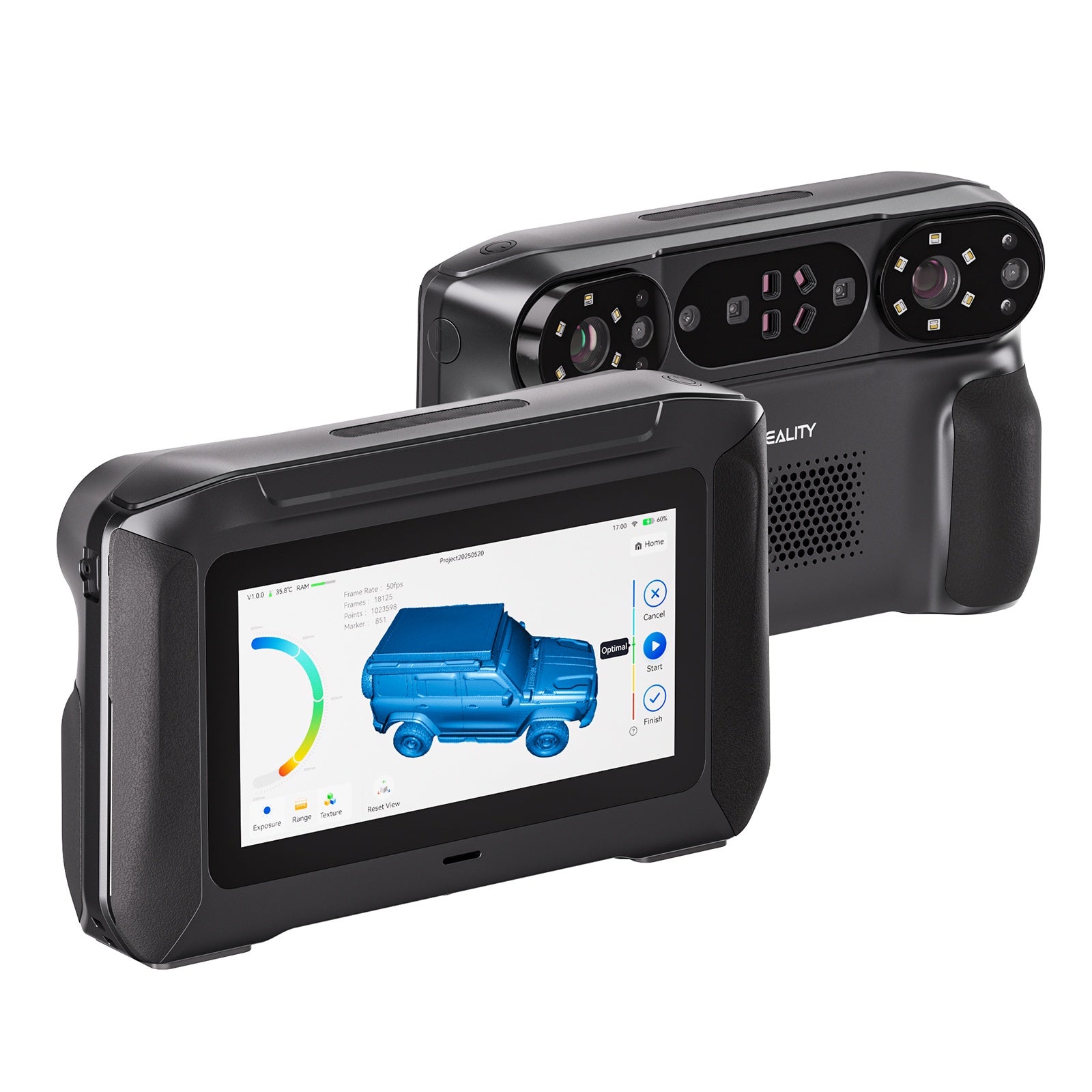

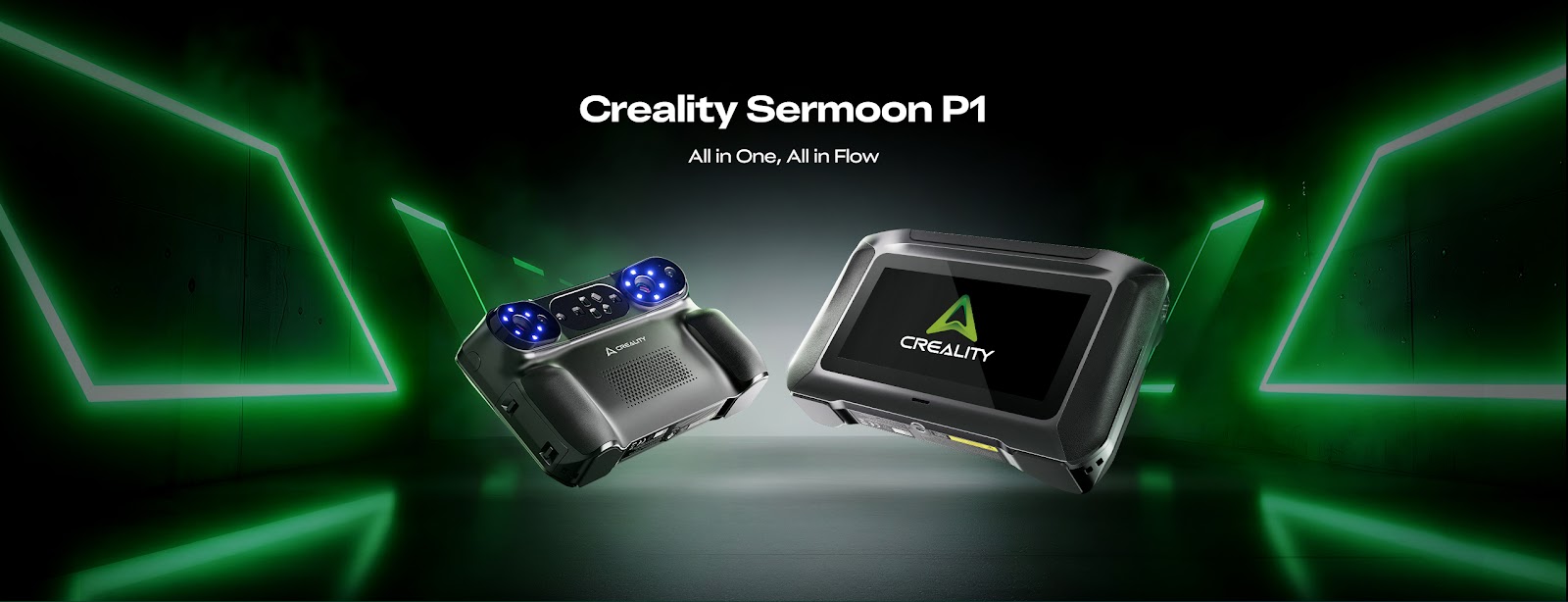

The Creality Sermoon P1 is a professional-grade, all-in-one 3D scanner that integrates scanning, processing, and exporting into a single handheld device. Powered by a high-performance Qualcomm 8-core 3.36 GHz processor and 24GB of RAM, it eliminates the need for a PC during the scanning workflow. The device features a hybrid light source system combining 22+7+1 blue laser lines with NIR structured light, allowing it to adapt to various materials, including black and metallic surfaces, without the need for scanning sprays.
Designed for flexibility and precision, the Sermoon P1 offers triple work modes: Standalone, Wired PC, and Wireless PC. It achieves a volumetric accuracy of 0.02mm + 0.06mm/m and features a 6-inch HD touchscreen for real-time preview and model editing. With its swappable dual-battery design and Wi-Fi 7 connectivity, the scanner is built for both indoor and outdoor professional applications such as reverse engineering, automotive customization, and industrial inspection.
Features

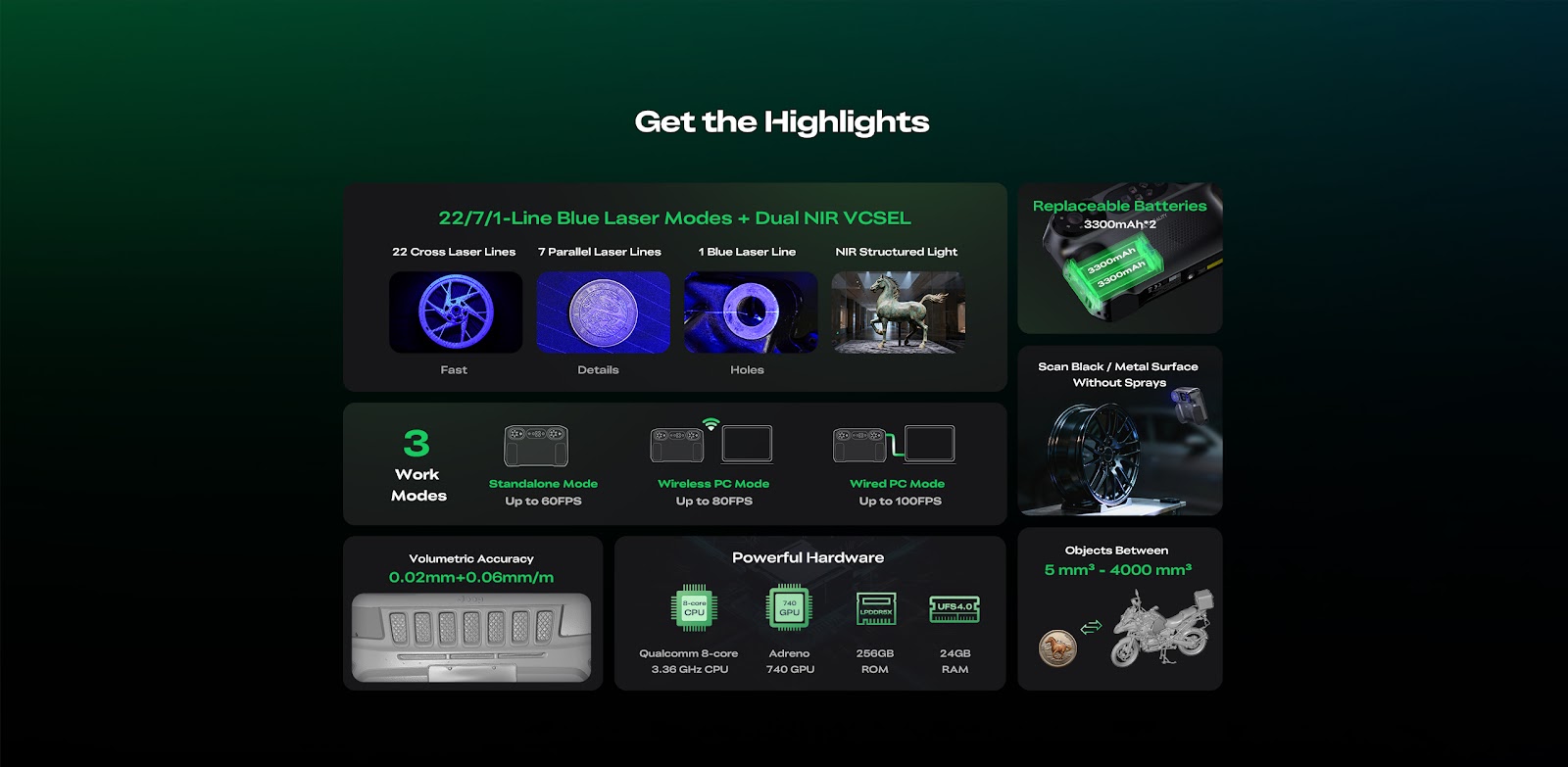

Key Features

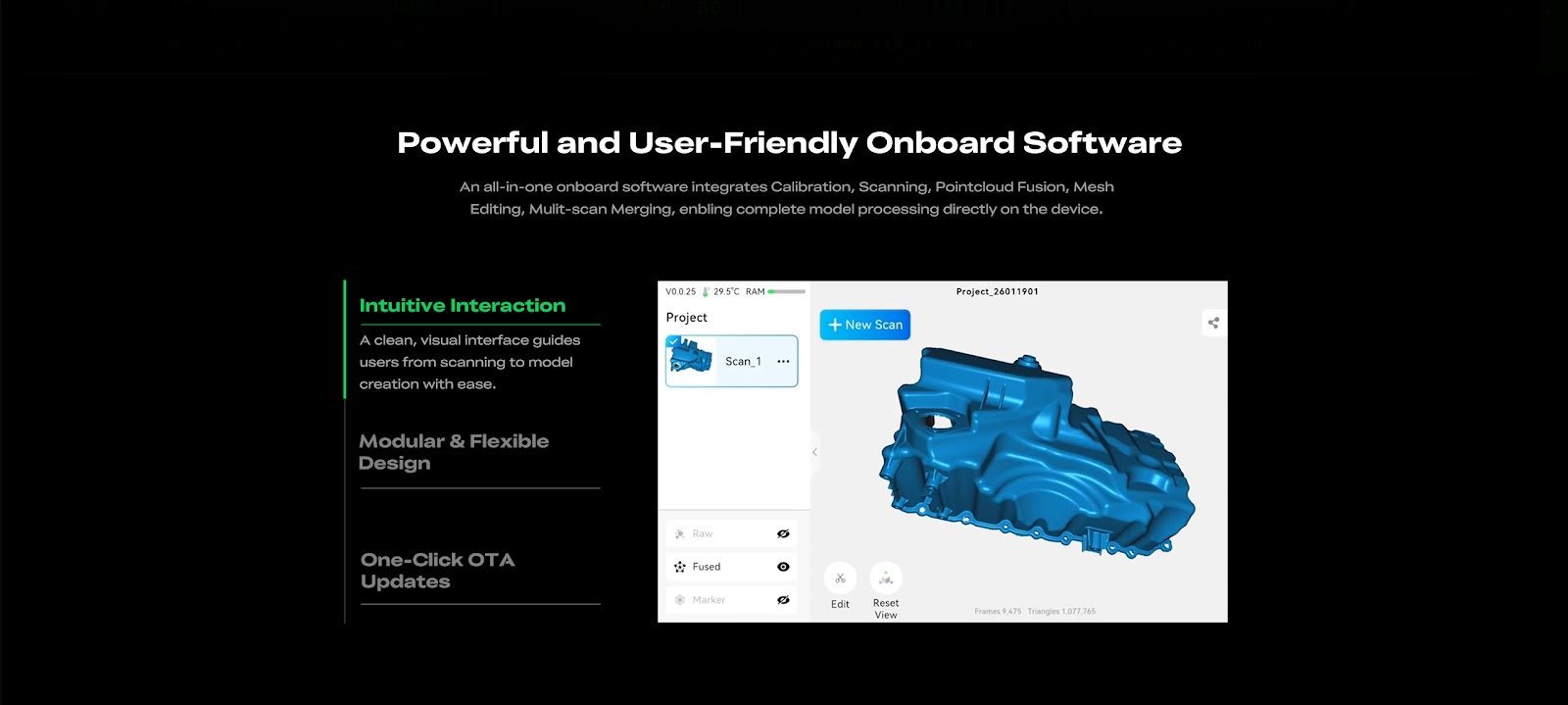

- ✓ All-in-one 3D scanning workflow: Scan, process, and export on a single device without a PC.
- ✓ Hybrid light source system: 22+7+1 blue laser lines plus NIR structured light.
- ✓ High-performance hardware: Qualcomm 8-core 3.36 GHz CPU, Adreno 740 GPU, and 24GB LPDDR5X RAM.

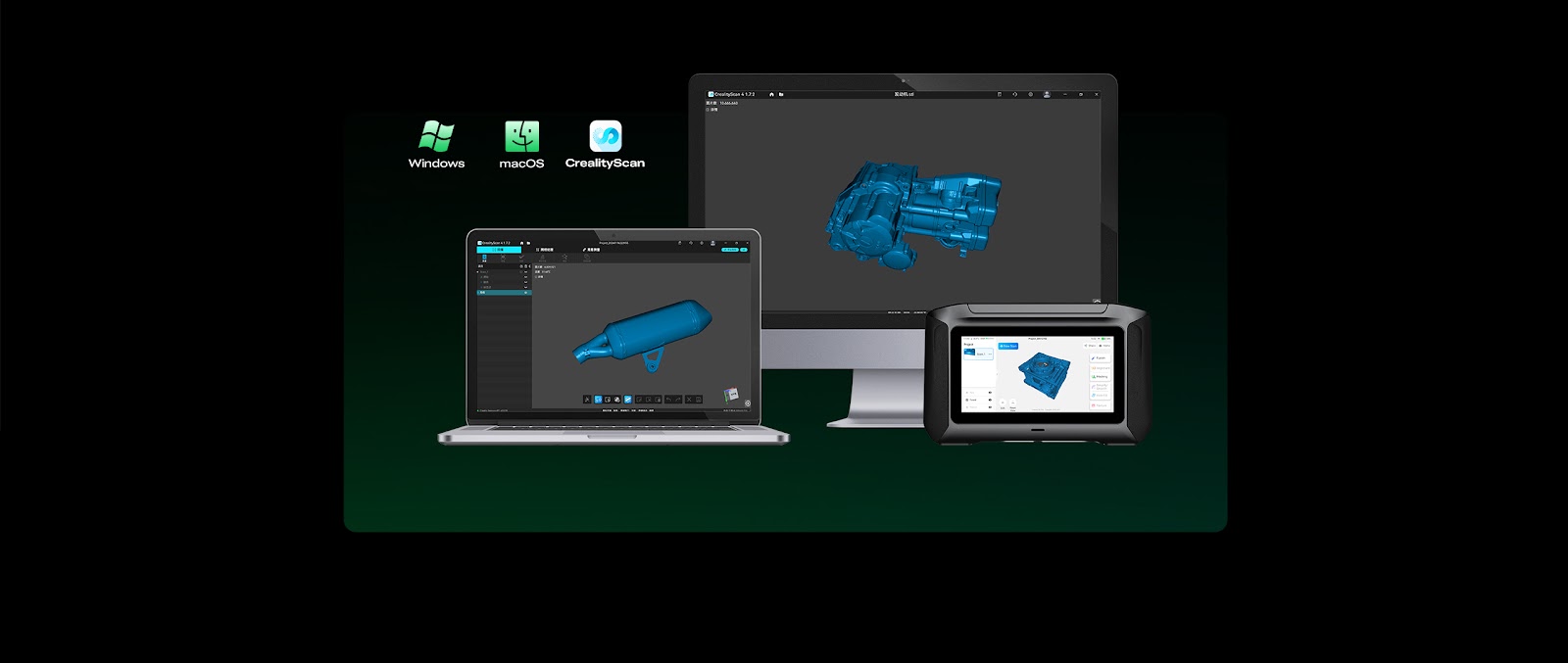

- ✓ Triple Work Modes: Supports Standalone Mode, Wired PC Mode, and Wireless PC Mode.
- ✓ High Precision: Volumetric accuracy of 0.02mm + 0.06mm/m.
- ✓ Deep Hole Scanning: Single-line laser mode supports a depth-to-diameter ratio of up to 6:1.
- ✓ Fast Scanning: Up to 100 FPS in PC-connected mode and 60 FPS in standalone mode.
- ✓ Markerless Scanning: NIR structured light mode allows for marker-free scanning of large objects and human bodies.
- ✓ Material Adaptability: Scans black and metal surfaces without the need for sprays.
- ✓ 6-Inch HD Touchscreen: 160° wide viewing angle for clear outdoor visibility and intuitive interaction.
- ✓ Wi-Fi 7 Connectivity: Features advanced lossless compression for fast and stable data transfer.

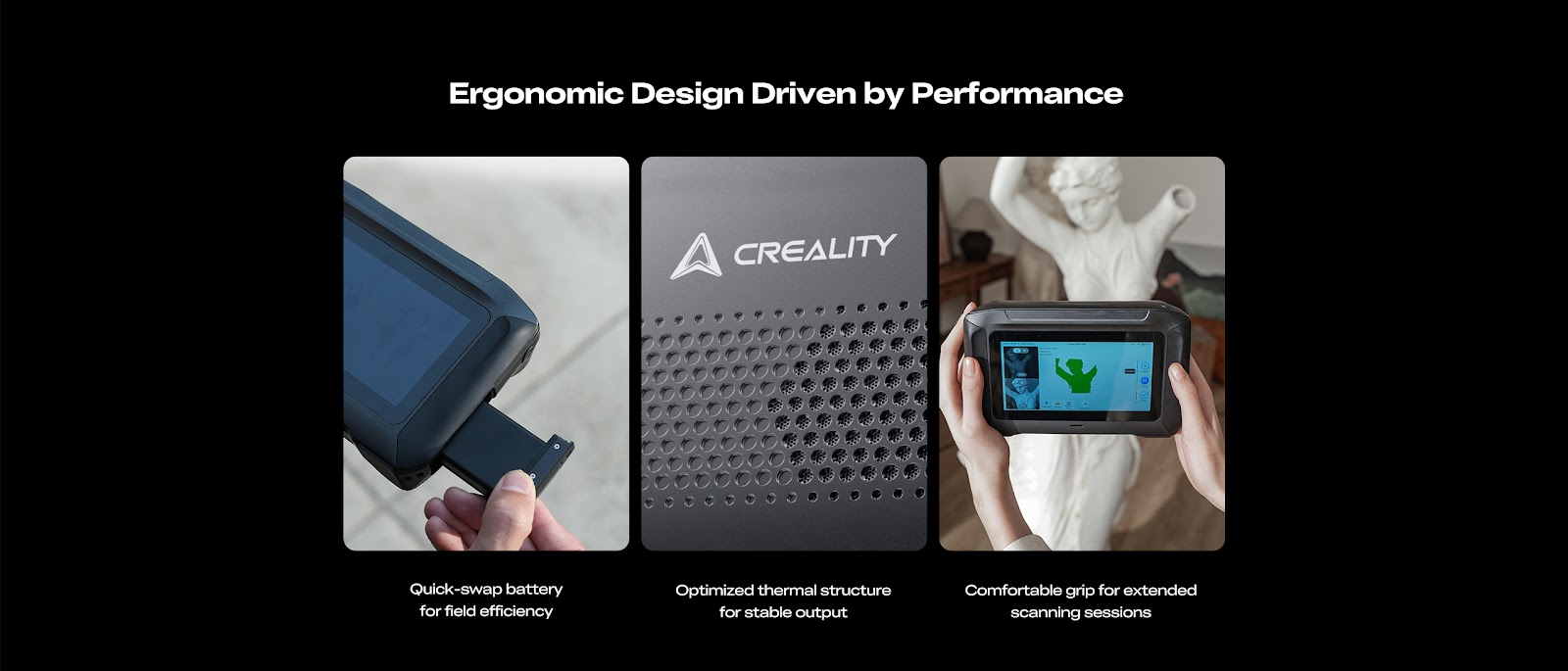

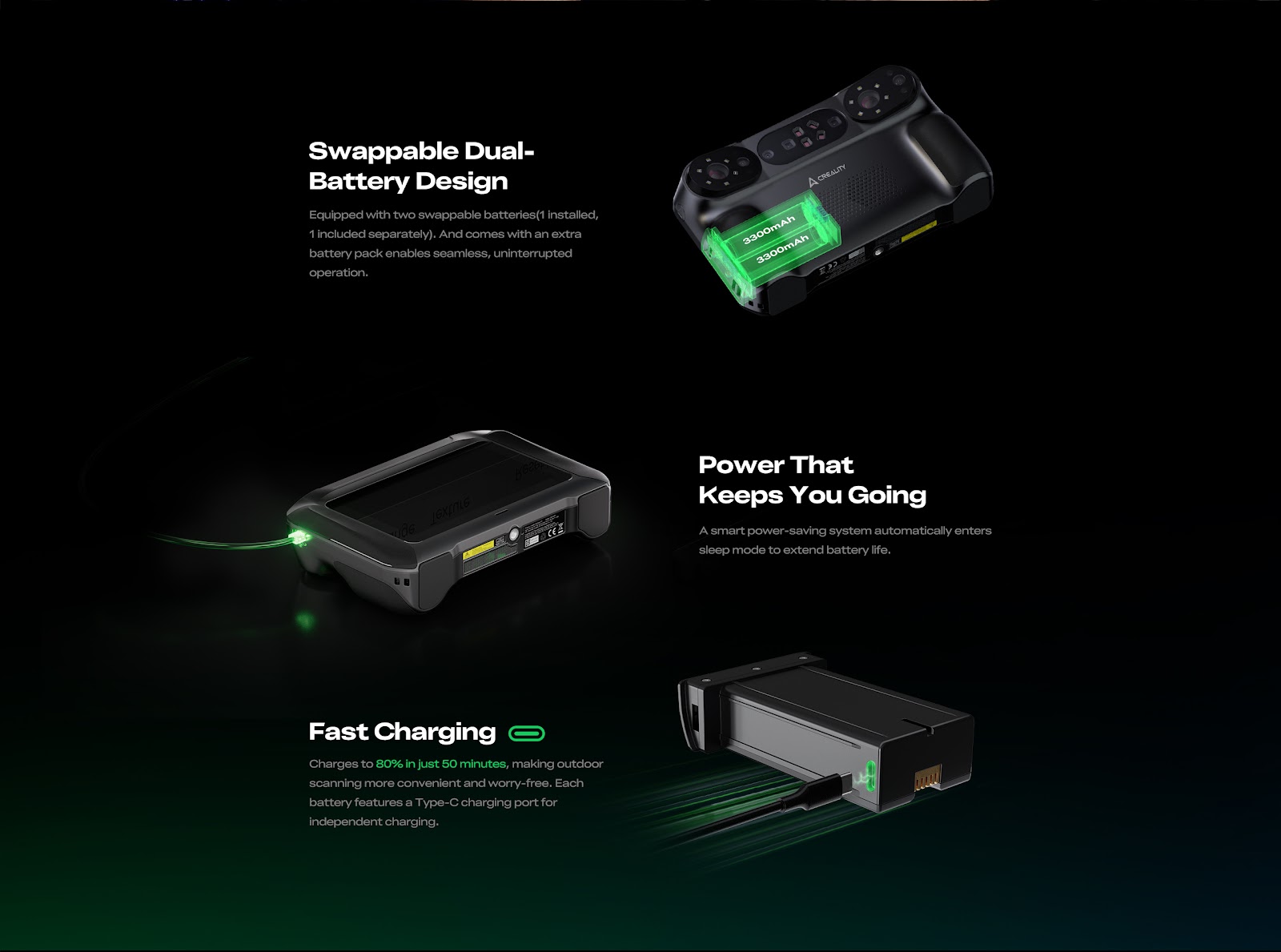

- ✓ Swappable Dual-Battery Design: Includes two 3300mAh batteries with fast charging (80% in 50 minutes).

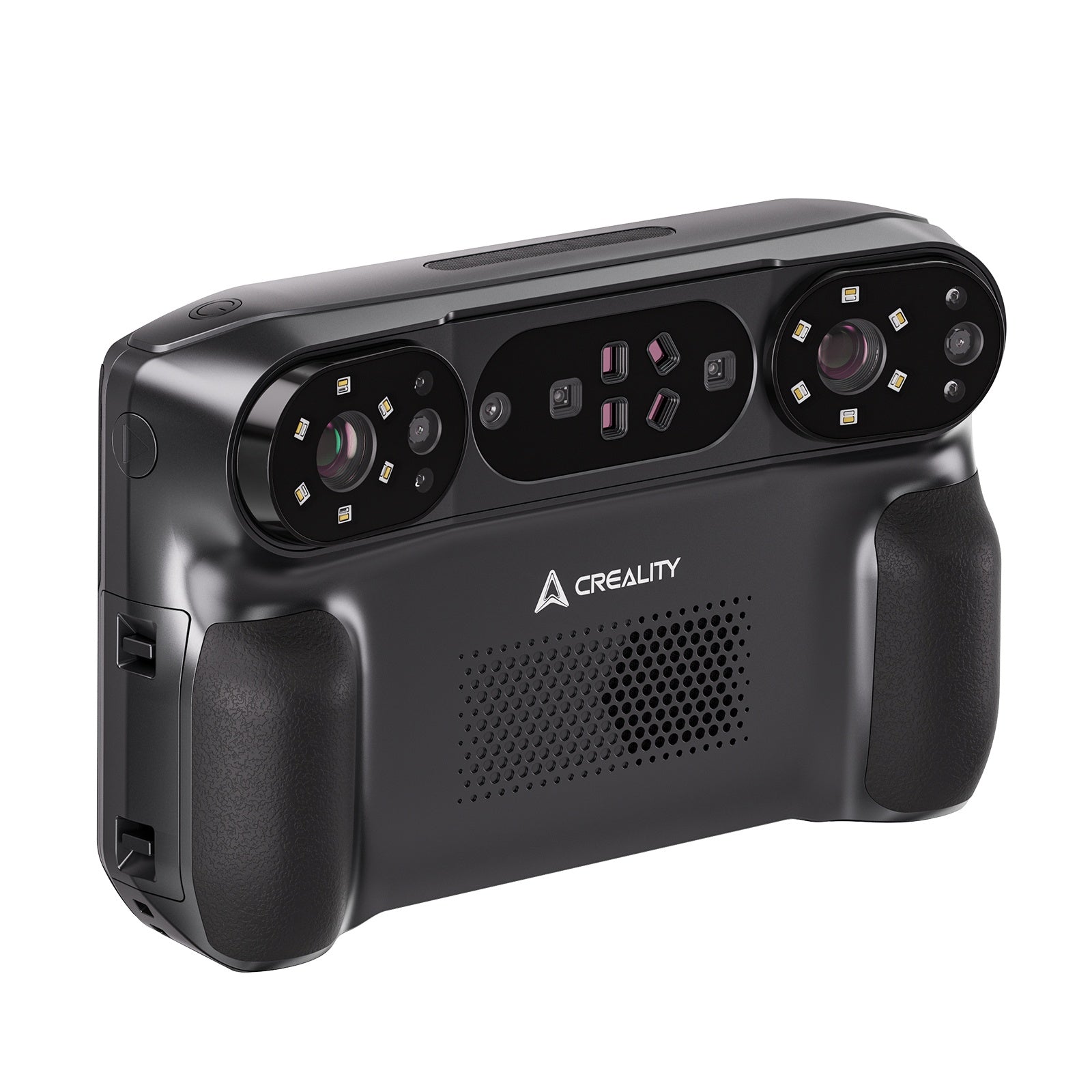

- ✓ Full Color Texture Scanning: Equipped with a Qualcomm ISP chip and RGB camera with 12 dual-color LED fill lights.
- ✓ AI Temperature Compensation: Ensures stable output and consistent scanning during extended use.
Specs
Technical Specifications
| CPU | Qualcomm 8-core 3.36 GHz |
| GPU | Adreno 740 |
| RAM | 24GB LPDDR5X |
| ROM | 256GB UFS 4.0 |

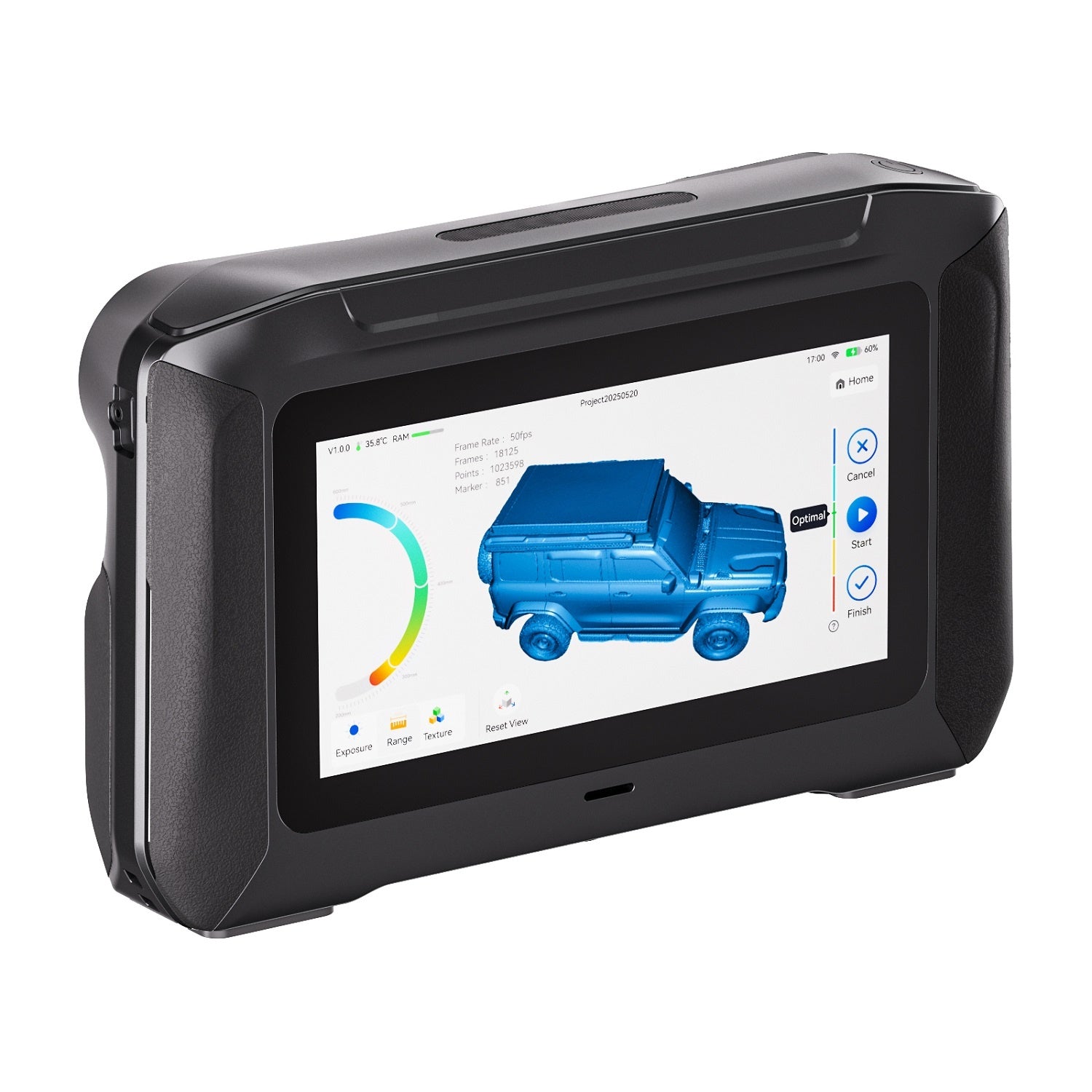

| Display | 6-Inch Full HD Touchscreen (160° viewing angle) |
| Light Source | 22+7+1 Blue Laser Lines + Dual NIR VCSEL |
| Volumetric Accuracy (Blue Laser) | 0.02mm+0.06mm/m |
| Volumetric Accuracy (NIR) | 0.075mm+0.1mm/m |
| Accuracy (Blue Laser) | Up to 0.02mm |
| Accuracy (NIR) | Up to 0.075mm |
| Scan Rate (Standalone - Single Blue Laser) | 61,000 pts/s |
| Scan Rate (Standalone - 7 Parallel Blue Laser) | 430,000 pts/s |
| Scan Rate (Standalone - 22 Cross Blue Laser) | 1,044,000 pts/s |
| Scan Rate (Standalone - Infrared) | 3,440,000 pts/s |
| Scan Rate (PC Connected - Single Blue Laser) | 102,000 pts/s |
| Scan Rate (PC Connected - 7 Parallel Blue Laser) | 716,000 pts/s |
| Scan Rate (PC Connected - 22 Cross Blue Laser) | 1,740,000 pts/s |
| Scan Rate (PC Connected - Infrared) | 6,881,000 pts/s |
| 3D Resolution (Blue Laser) | 0.05-2mm |
| 3D Resolution (NIR) | 0.1-2mm |
| Scanning Speed (Standalone - Blue Laser) | Up to 60 FPS |
| Scanning Speed (Standalone - Infrared) | Up to 15 FPS |
| Scanning Speed (PC Connected - Blue Laser) | Up to 100 FPS |
| Scanning Speed (PC Connected - Infrared) | Up to 30 FPS |

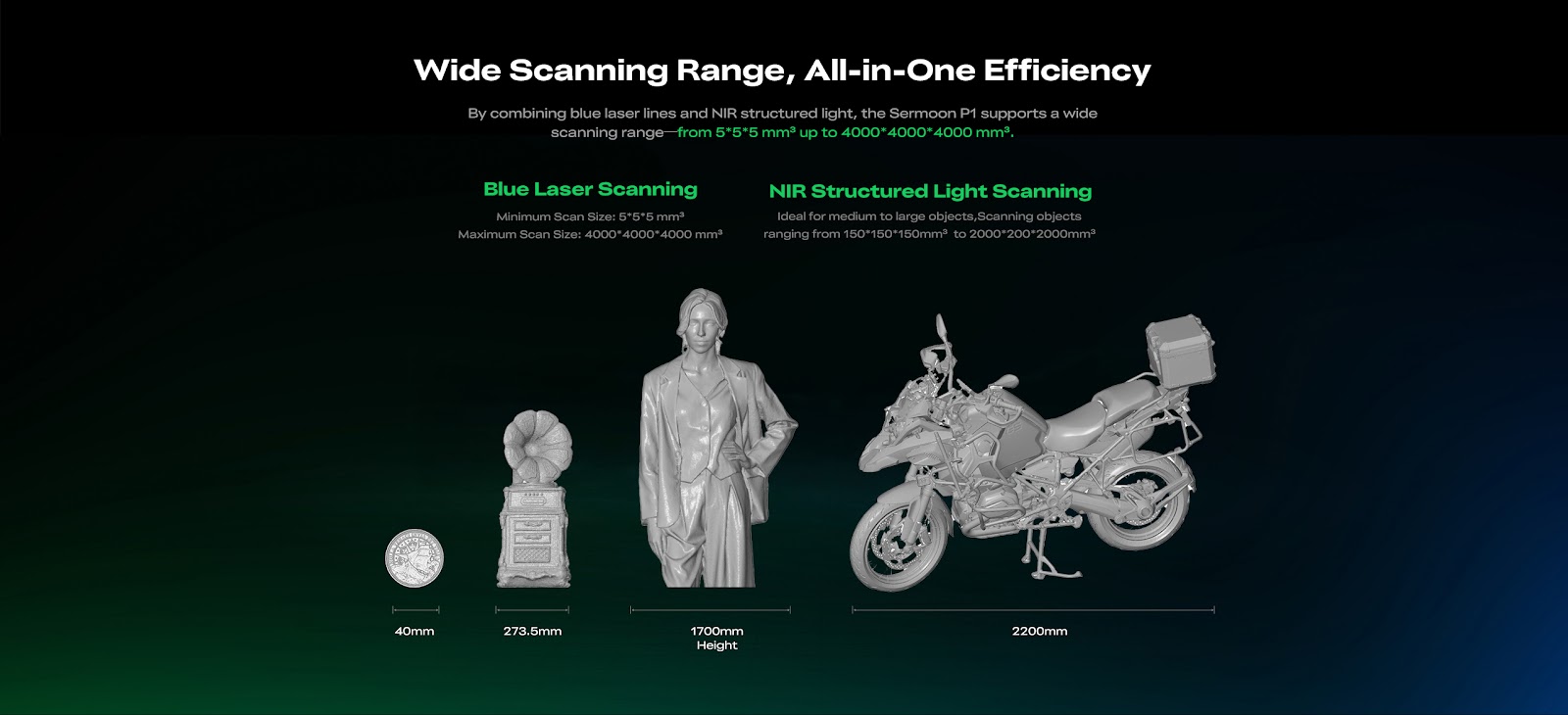

| Minimum Scan Size (Blue Laser) | 5*5*5 mm³ |
| Maximum Scan Size (Blue Laser) | 4000*4000*4000 mm³ |
| NIR Scanning Range | 150*150*150mm³ to 2000*200*2000mm³ |
| Blue Laser Max FOV | 380 × 365 mm @ 550 mm |
| Infrared Max FOV | 1245 × 754 mm @ 1000 mm |
| Battery Capacity | 3300mAh*2 (Replaceable) |
| Connectivity | Wi-Fi 7 (802.11be), USB 3.0 Type-C |
| Color Scanning | Supported (RGB Camera + 12 LED Fill Lights) |

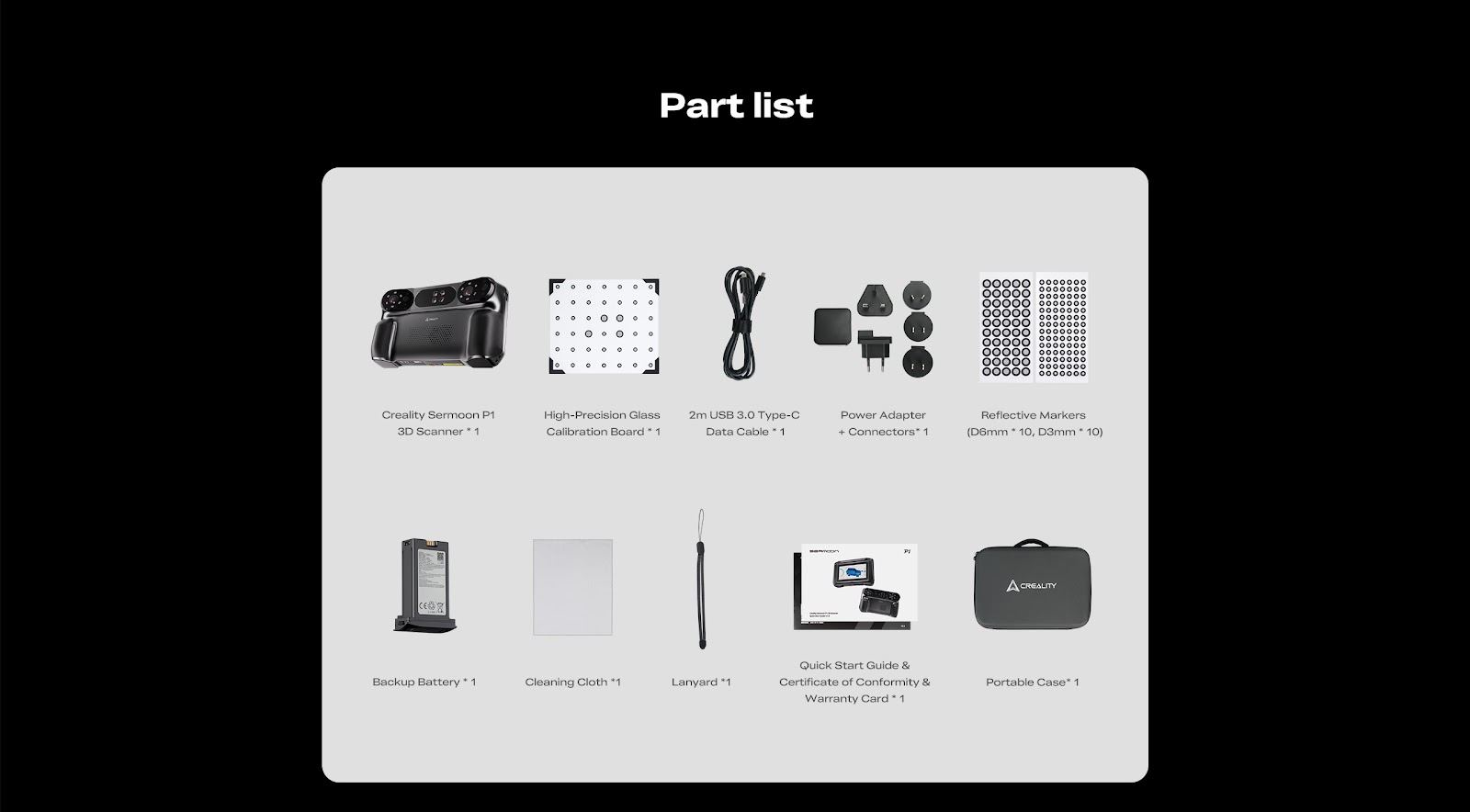

What's In The Box
- Creality Sermoon P1 3D Scanner * 1
- High-Precision Glass Calibration Board * 1
- 2m USB 3.0 Type-C Data Cable * 1
- Power Adapter + Connectors * 1
- Reflective Markers (D6mm * 10, D3mm * 10)
- Backup Battery * 1
- Cleaning Cloth * 1
- Lanyard * 1
- Quick Start Guide & Certificate of Conformity & Warranty Card

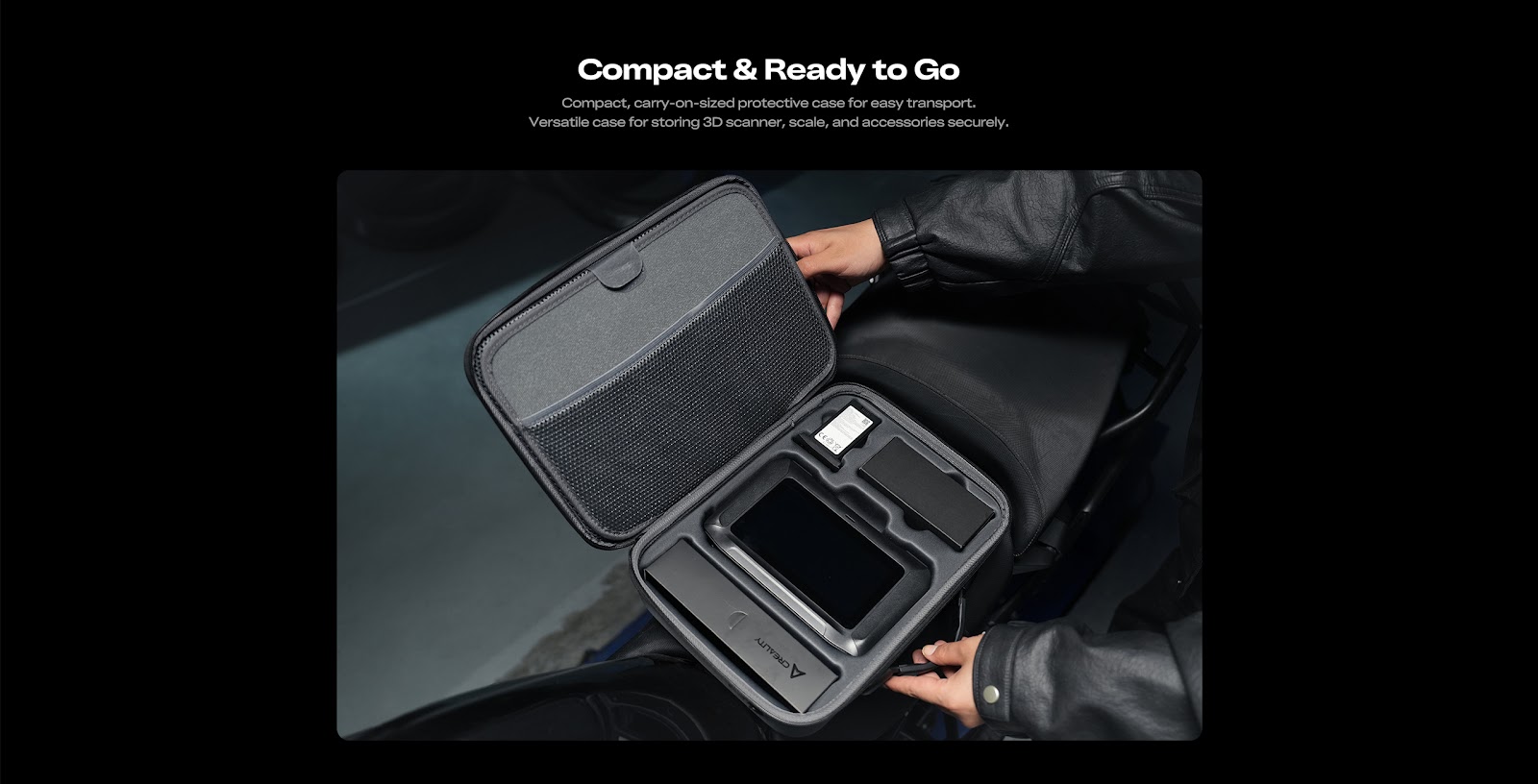

- Portable Case * 1
