| Scanning Mode |
Deep hole scanning (Single laser line), Detailed Scanning (7 Parallel laser lines), High Speed Scanning (34 Cross laser lines), Marker-free Scanning (NIR Binocular structured light) |
| Accuracy |
Up to 0.02mm (Laser), Up to 0.05mm (NIR) |
| Volumetric Accuracy (Laser) |
0.02mm+0.04mm/m; 0.02mm+0.03mm/m (with Scale Bar) |
| Volumetric Accuracy (NIR) |
0.05mm+0.1mm/m |
| Scanning rate (Deep hole) |
84,000 measurements/s |
| Scanning rate (Detailed) |
756,000 measurements/s |
| Scanning rate (High Speed) |
1,734,000 measurements/s |
| Scanning rate (NIR) |
5,000,000 measurements/s |
| Scanning Speed |
Up to 90fps (Laser), Up to 85fps (Laser), Up to 30fps (NIR) |
| 3D Resolution |
0.05-2mm (Laser), 0.1-2mm (NIR) |
| Photogrammetry |
Include photogrammetry mode (with 2X Magnetic carbon fiber scale bar) |
| Min. scan volume |
5mm x 5mm x 5mm (Laser), 150mm x 150mm x 150mm (NIR) |
| Single Capture Range (Laser) |
215mm x 167mm@200mm to 650mm x 531mm@600mm |
| Single Capture Range (NIR) |
650mm x 531mm at 600mm to 1300mm x 935mm at 1200mm |
| Working distance (Laser) |
200mm-600mm (Deep hole/High Speed), 150mm-400mm (Detailed) |
| Working distance (NIR) |
170mm-1200mm |
| Color Mapping |
Supported |
| Alignment mode |
Marker / Global Marker / Geometry / Texture |
| Color Supplemental Light |
12 White LEDs |
| Outdoor Scanning (Laser) |
Below 100,000 lux (Single/34 lines), Below 50,000 lux (7 lines) |
| Outdoor Scanning (NIR) |
Below 30,000 lux |
| Marker Recognition Enhancement |
12 Blue LEDs |
| Laser Safety |
Class II (eye safe) |
| Device Weight |
530g |
| Size |
216mm*74mm*51mm |

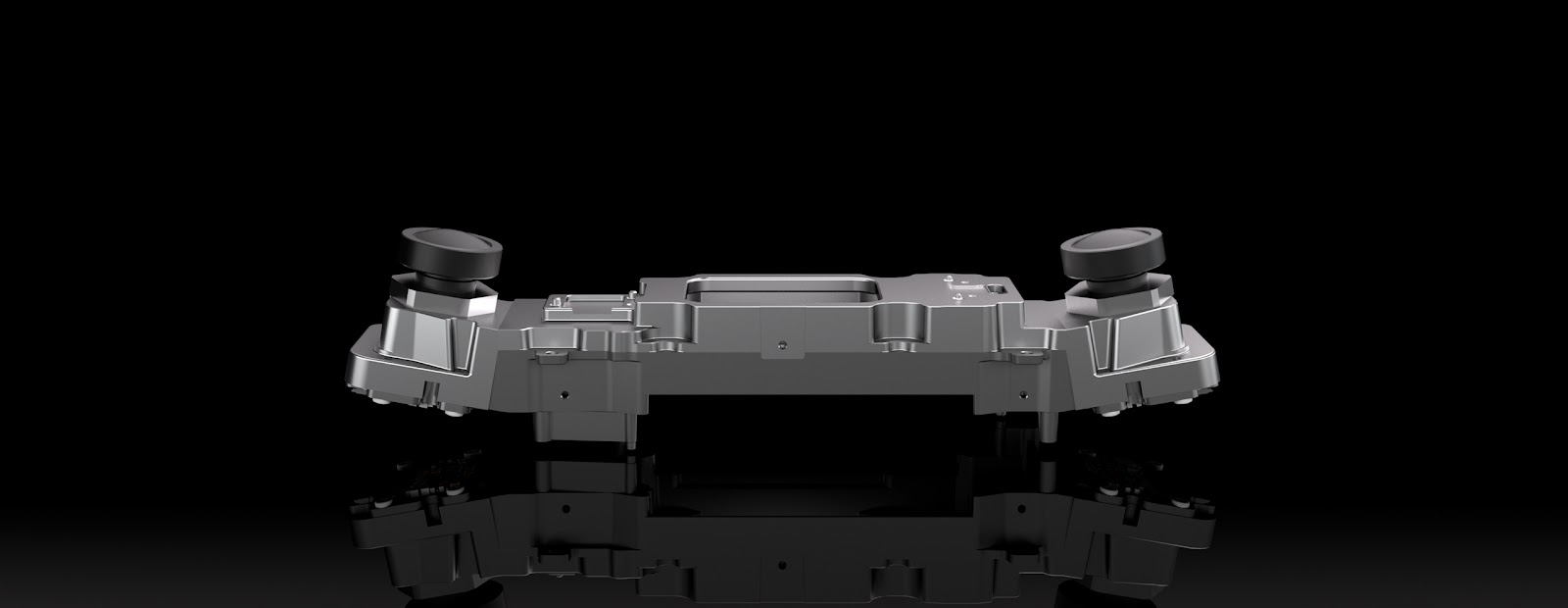

| Mechanical Structure |
Optoelectronic bracket and lens base, CNC integrated molding Total mechanical locking |
| Calibration board |
High-precision glass calibration board |
