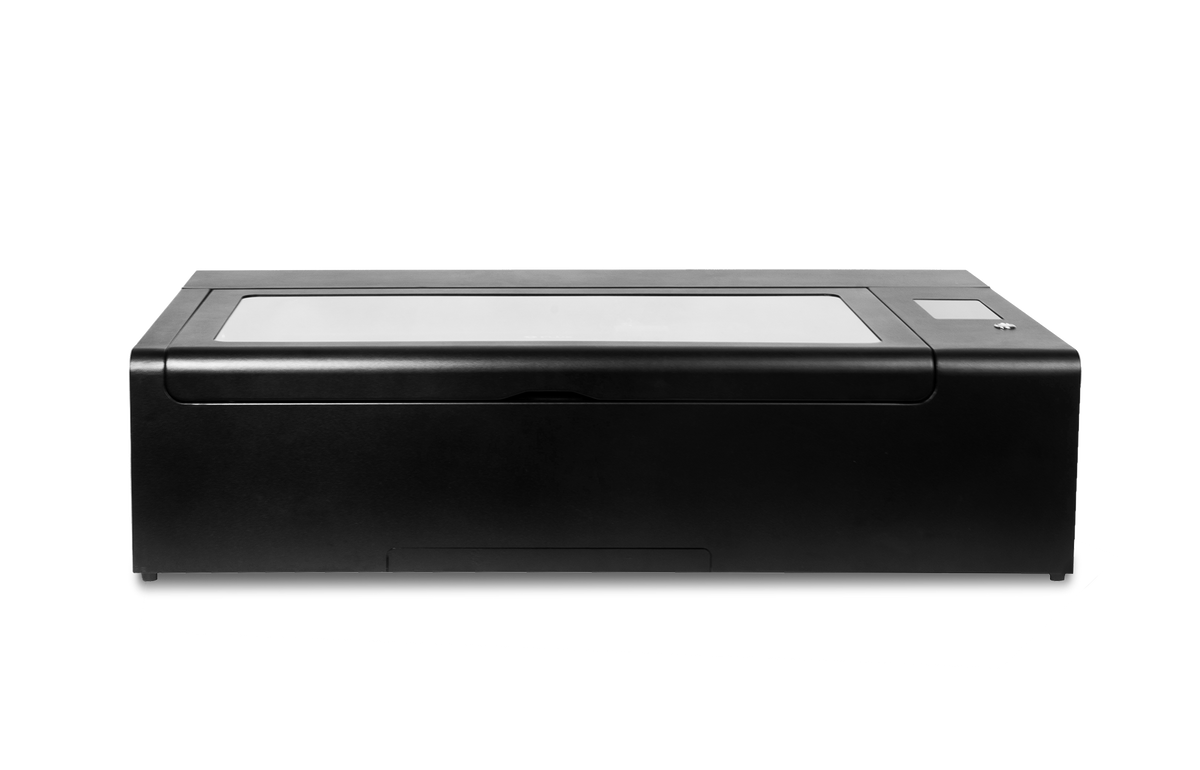

Flux HEXA 60W CO2 Laser Cutter

FLUX HEXA

60W Professional Desktop CO2 Laser Cutter & Engraver

Discover the FLUX HEXA, a professional desktop CO2 laser cutter and engraver engineered to bring your most ambitious designs to life. Built for mass production and demanding professional requirements, the HEXA features a powerful 60W catalyzed premium CO2 laser tube designed for a 10,000-hour lifespan. Its substantial 730 x 410 x 125 mm working area is 33% larger than previous models, offering unmatched capacity and cutting-edge performance. Whether you are cleanly slicing through organic materials up to 21mm thick in a single pass or engraving with extreme precision, this robust machine delivers next-level quality for your workflow.

Designed with smart features to maximize operational efficiency, the HEXA comes equipped with an integrated electric elevation platform that allows you to automatically adjust focus with a double tap on its 7-inch 1024 x 600 LCD touch panel. Driven by a powerful Cortex M4 core chip, it achieves blazing-fast engraving speeds of up to 900 mm/s. A built-in HD CMOS camera provides a live workspace preview, while versatile connection options including Wi-Fi, USB, and Ethernet ensure seamless integration. Backed by OSHA compliance and comprehensive safety sensors, the HEXA combines pro-grade power with intuitive everyday operation.

Key Features

• ✓ 60W Catalyzed Premium CO2 Laser Tube: Delivers high laser efficiency and cuts through materials up to 21mm thick in a single pass.
• ✓ Massive Working Area: Features a 730 x 410 x 125 mm workspace that provides 33% more capacity than the Beambox Pro.
• ✓ High-Speed Engraving: Powered by a Cortex M4 core chip, enabling maximum engraving speeds up to 900 mm/s.
• ✓ Electric Elevation Platform: Standard-equipped platform automatically adjusts to the optimized focus height with a double tap.
• ✓ Intuitive 7-Inch Touch Panel: Features a 1024 x 600 LCD screen to start, pause, stop, and monitor task status directly at the machine.
• ✓ Built-in HD CMOS Camera: Captures live previews of the workspace for precise visual design alignment.
• ✓ Versatile Connectivity: Supports Wi-Fi, USB flash drives, USB wire, Ethernet, and direct network cable options.
• ✓ Advanced Safety Systems: Includes safety sensors for unplanned movement, overheated temperature warnings, fire alarms, and smart lid detection.
• ✓ Beam Studio Software: Free, full-featured design and engraving software compatible with Windows, macOS, Linux, and Chrome OS.
• ✓ Durable Lifespan: High-stability laser tube rated for 10,000 hours of operation with a 1-year warranty.

Technical Specifications

Frequently Asked Questions

What is HEXA?

HEXA is a professional desktop CO2 laser cutter and engraver featuring a powerful 60-watt CO2 laser that can cut and engrave on organic materials and engrave select metals.

What materials can HEXA cut and engrave?

HEXA can cut and engrave on wood, leather, cardboard, acrylic, rubber, foods, and more, with a maximum cutting thickness of 21mm (varies by material). It can also engrave on anodized aluminum and stainless steel with specialized coating, though power levels are not sufficient to cut metal.

What is the warranty?

FLUX provides a 12-month warranty for HEXA and the laser tube.

What file types does Beam Studio support?

Beam Studio is compatible with JPG, PNG, SVG, DXF, AI, and PDF file formats.

Can HEXA operate independently?

Yes. Once files are imported to Beam Studio and uploaded to HEXA, you can disconnect your computer anytime. You can also import files directly using a USB flash drive or choose from recent tasks on the touch panel.

What operating systems does Beam Studio support?

Beam Studio supports Windows, macOS, Linux, and Chrome OS.

What safety precautions should I take?

HEXA includes smart lid detection, safety sensors for unplanned movement, temperature warnings, and a fire alarm. Note that you should never leave HEXA unattended while operating.

What is the wattage and wavelength of the laser tube?

HEXA is equipped with a CO2 laser tube operating at a wavelength of 10,640 nm with an average power of 60W.
