FLUX Promark D20 Desktop Fiber Laser

FLUX Promark D20

20W Desktop Fiber Laser Cutter & Engraver

Discover ultimate precision and speed with the FLUX Promark D20 Desktop Fiber Laser Engraver. Engineered for creators, jewelers, and industrial makers alike, this 20W fiber laser delivers blazing fast marking speeds up to 383.70 in/s alongside an ultra-fine 0.0012 in laser spot. Whether you are crafting fine jewelry, customizing tools, or creating intricate industrial parts, the Promark D20 brings your most detailed designs to life with exceptional accuracy and efficiency. Its compact, intuitive open-frame design seamlessly integrates into any workspace while offering powerful professional capabilities.

Equipped with an 8.66 x 8.66 in work area, built-in smart camera preview, and a motorized lift with dynamic focus, the Promark D20 makes precise and efficient marking simpler than ever. It supports over 150 materials, including stainless steel, aluminum, brass, titanium, select plastics, stone, and dark acrylic. Featuring advanced 3D and deep engraving capabilities, red light positioning, and compatibility with both FLUX Beam Studio and LightBurn software, it provides maximum flexibility. Upgrade your workflow with USB-A connectivity, robust file format support, and optional add-ons like rotary attachments or the Safe+ enclosure.

Key Features

• ✓ 20W Fiber Laser: Delivers high-performance fiber laser marking and engraving power for a variety of demanding applications.
• ✓ High-Speed Engraving: Achieves blazing fast marking speeds up to 383.70 in/s (10,000 mm/s).
• ✓ Ultra-Fine Laser Spot: Features an ultra-fine 0.03mm (0.0012 in) laser spot for incredibly detailed designs and crisp markings.
• ✓ Generous Work Area: Provides an 8.66” x 8.66” (220 x 220 mm) working space for your projects.
• ✓ Smart Camera Preview: Built-in smart camera preview and red light positioning for effortless alignment.
• ✓ Dynamic Focus & Height Adjustment: Features built-in height adjustment and a motorized lift with dynamic focusing for precise results.
• ✓ Extensive Material Support: Supports 150+ materials including stainless steel, aluminum, brass, titanium, select plastics, stone, and dark acrylic.
• ✓ Advanced Engraving Capabilities: Supports advanced 3D engraving, deep engraving, and black & white marking.
• ✓ Dual Software Compatibility: Works seamlessly with both FLUX Beam Studio and LightBurn software.

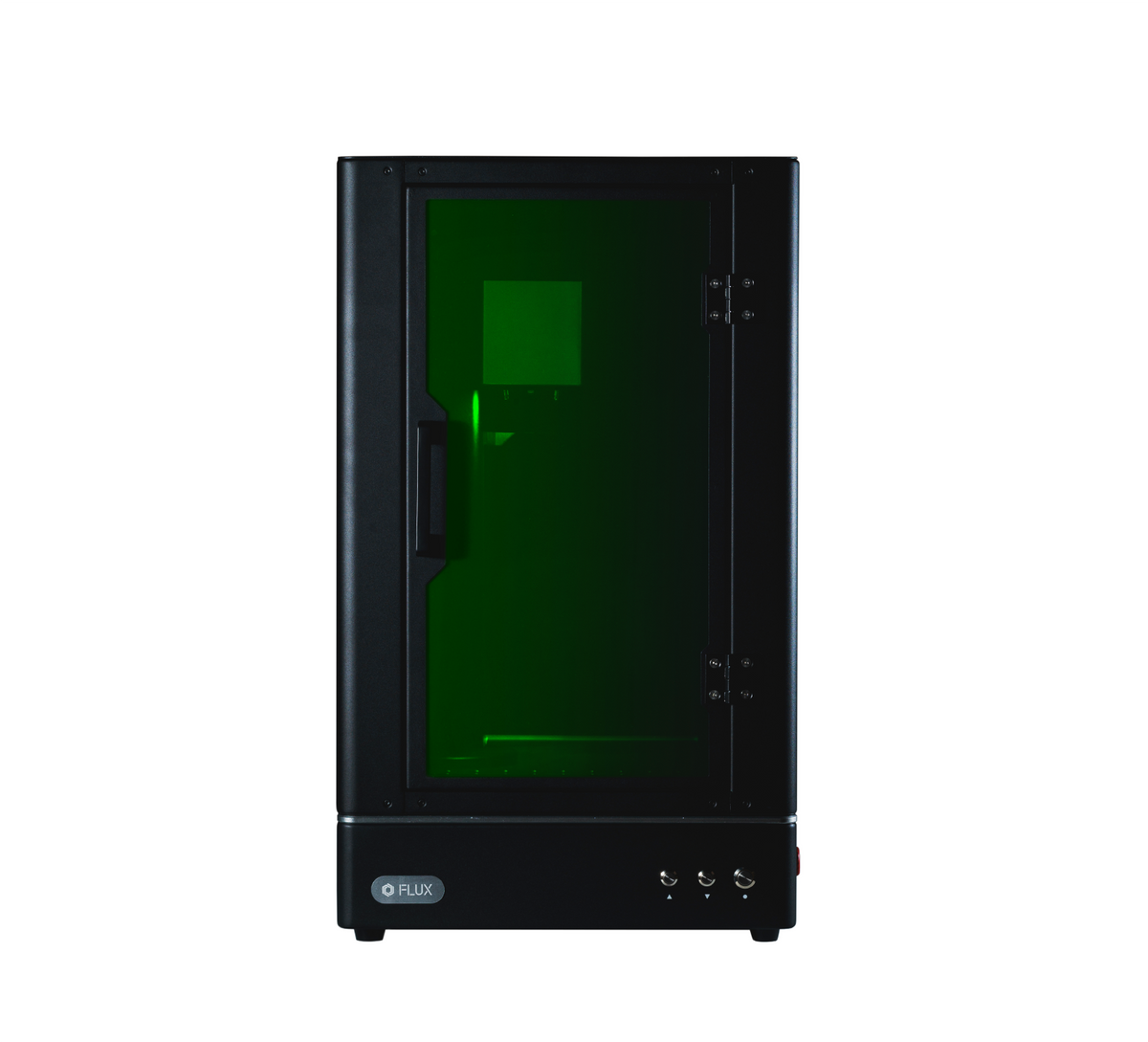

• ✓ Optional Safety Enclosure: Optional Promark Safe+ Add-on available for fully enclosed Class 1 protection.

Technical Specifications

FAQ's

Frequently Asked Questions

What software is compatible with the Promark D20?

The Promark D20 is compatible with Beam Studio and LightBurn, and supports common file formats including JPG, PNG, SVG, DXF, AI, PDF, and BMP.

What materials can the Promark D20 engrave?

FLUX lists materials including stainless steel, aluminum, gold, silver, platinum, titanium, brass, and iron among the materials compatible with the Promark series.

What is the work area of the Promark D20?

The D20 comes with a standard 220 × 220 mm working area. Optional lenses can provide 110 × 110 mm or 150 × 150 mm working areas for different applications.

What is the maximum engraving speed?

The Promark D20 features a blazing fast maximum engraving speed of 10,000 mm/s (383.70 in/s).

Is an enclosure available for safety protection?

Yes, an optional Promark Safe+ Add-on is available to provide fully enclosed Class 1 protection.

What file formats are supported?

Compatible file formats include JPG, PNG, SVG, DXF, AI, PDF, and BMP.

What type of laser source does the Promark D20 use?
The Promark D20 uses a 20W fiber laser operating at 1064 nm, making it designed primarily for marking and engraving compatible metals and other suitable materials.
