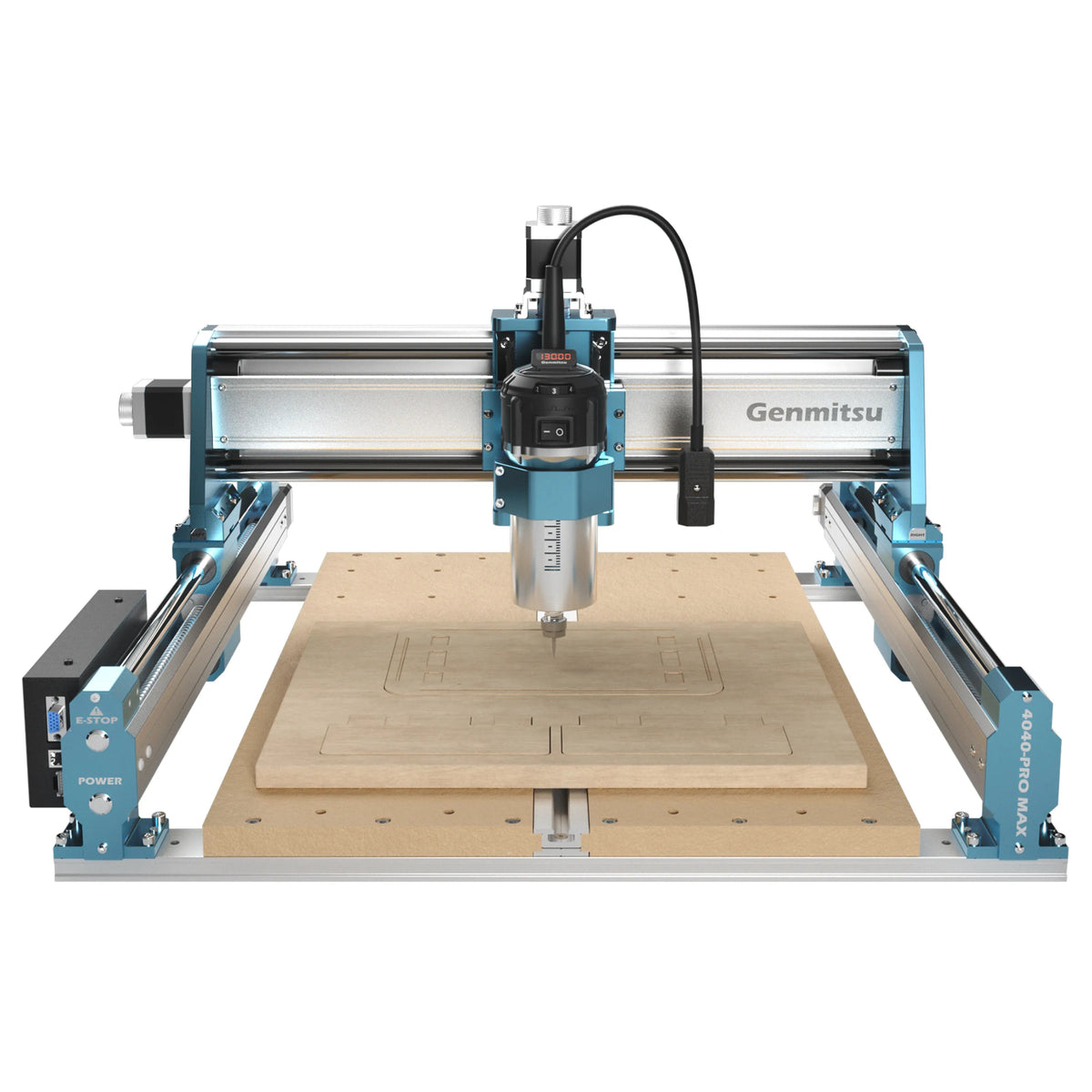

Genmitsu 4040-PRO MAX CNC Router

Desktop CNC Router — Machine Only

The The Genmitsu 4040-PRO MAX represents the next evolution in desktop CNC machining. Responding directly to user feedback, we have reinforced the chassis, upgraded the motion system, and integrated a powerful 710W router with digital display to handle both intricate wood carving and demanding metal milling tasks with ease.

REINFORCED PLATFORM STABILITY

Addressing common flatness issues, the upgraded spoilboard features a central aluminum support bar integrated with T-tracks. This hybrid design reinforces the MDF to prevent sagging under load, ensuring a level surface for precision metal milling and detailed wood carving.

4040-PRO MAX CNC Router Machine, Enhanced XZ Axis, Ultimate Crafting Power

Increased Z-axis Pass Height

With a 400x400x78mm (15.7" x 15.7" x 3.1") active area and a massive 100mm Z-pass height (40% higher than the PRO), this machine easily accommodates thicker stock, tall relief carvings, and add-ons like rotary axes without sacrificing vertical clearance.

High-Performance 710W Spindle

This CNC router features a powerful 710W spindle, meticulously selected for its ability to cut through tough materials like aluminum effortlessly. With a perfect 5-star rating on Amazon, this spindle is highly recognized by customers for its precision and reliability—it's not just any spindle, it's a choice made with care and customer satisfaction in mind.

Versatile Compatibility

Compatible with almost 4040-PRO accessories, including routers, four-axis modules, WiFi modules, relays, clamps, and extension parts, the 4040-PRO MAX offers versatile options for customization and expansion. (Only compaitble with the Y-axis extenstion kit.)

User-Friendly Design

Featuring a comprehensive control system with GRBL firmware-compatible software (such as Candle, LaserGRBL, and LightBurn), an intuitive offline controller (sold separately), and safety features like an emergency stop switch and homing button, this CNC router is designed for both novice and experienced users.

Technical Specifications

Product	4040-PRO MAX	Other 4040
Assembly Time	<30mins	/
Frame Material	All Aluminum	Aluminum+Acrylic
Max Speed(mm/m)	2000	2000
Max RPM	6500-30000 RPM	10000
Running Accuracy	±0.1mm	±0.1mm
Drive System	Y-axis: Lead Screw, X-axis: Linear Optical Axis Rail, Z-axis: Linear Guide Rail	Belt (X,Y)+Lead screw (Z)
Laser Support	✔️	✔️
Semi-Assembled	✔️	❌
Stepper motor	NEMA17 42	NEMA17
Working Area	400 x 400 x 78mm 15.75 x 15.75 x 3.1 in	400 x 400 x 60mm 15.7 x 15.7 x 2.3 in
Machine Size	660 x 666 x 390mm 26.98 x 26.22 x 15.35in	/
Weight	24.6 kg 54.2 lb	/
Spindle Power	710W Digital Trimmer Router	775 60W
Spindle Mount	65mm	42mm
Power Supply	24V/4A	12V/5A
Limit switches	✔️	✔️
Emergency-Stop	✔️	✔️
Z-Probe	✔️(Led)	✔️
Baffles	4040 Dust Baffles	/
Offline Controller	CTL4040	❌
Hand-screwed Wheel Support	✔️	/
MPG Interface	✔️	/
Platform	T-track Reinforced MDF Platform	MDF Platform
4th Axis Support	✔️	/
Driver Chip	TB67S109	/
Control	GRBL	GRBL
MCU	32bits	32bits

What's In The Box

Machine Kit:

1x 4040-PRO MAX CNC Router Machine (Upgraded Design)
1x 710W Digital Display Compact Router Kit (φ65mm)
1x 52mm Retaining Ring
2x MDF Boards for Platform
1x Power Supply
1x USB Cable
1x USB Drive
1x Carving Router Bits Set
1x Upgraded LED Z-Probe Kit
4x Work Clamps
2x Collets (ER11 4mm, ER11 3.175mm)
2x Spare Limit Switches
Screw and Tool Kit

XZ-Axis Module for 4040-PRO:

1x XZ-Axis Module
1x X-axis Support Block (Left & Right)
1x Spindle Motor Mount (65mm)
1x Sheet Metal Cable Holder
1x 52mm Retaining Ring
1x D6-L20 Dowel Pin
1x X-axis Limit Switch (Spare)
Screw and Tool Kit

FAQ's

Frequently Asked Questions

What is the working area of the 4040-PRO MAX?
The 4040-PRO MAX provides a 400 × 400 × 78 mm (15.75 × 15.75 × 3.1 in) active working area and a 100 mm Z-axis pass height.

What spindle is included with the 4040-PRO MAX?
The Machine Only configuration includes a 710W digital-display compact router with a 6,500–30,000 RPM speed range.

What makes the 4040-PRO MAX different from the standard 4040-PRO?
The PRO MAX features an all-aluminum frame, upgraded XZ-axis structure, linear guideways, reinforced T-track MDF platform, and a 710W router, providing an upgraded platform for CNC projects.

Does the 4040-PRO MAX support a 4th-axis rotary attachment?
Yes. The 4040-PRO MAX supports a compatible 4th-axis rotary setup, allowing you to work on cylindrical and rotary projects.

What software is compatible with the 4040-PRO MAX?
The 4040-PRO MAX uses GRBL control and supports compatible software including Candle, LaserGRBL, and LightBurn. An offline controller is also available separately.
