Genmitsu PROVerXL 4030 V2 Desktop CNC Router (Machine Only)

★★★★★

5.0 (1 review)

Genmitsu PROVerXL 4030 V2 Desktop CNC Router (Machine Only)

Name: Genmitsu PROVerXL 4030 V2 Desktop CNC Router (Machine Only)
Rating: 5.00 (1 reviews)

Why Buy From Us?

✓ Flexible Payments — Pay over time with Shop Pay Installments*

✓ Trusted Brands — Quality equipment from established manufacturers

✓ Warranty Protection — Manufacturer-backed warranty coverage

✓ Dedicated Support — Help before and after your purchase

$1,049.25

Check your rate in seconds — no impact to your credit score.

In stock

Continental US shipping

Leaves the warehouse in 1–3 business days

Tracking emailed the moment it ships

Not sure this is the right machine for what you want to make?

Call us at +1 (463) 217-3558 (Mon–Fri, 9am–5pm EST) or email us at support@thecncdirect.com — we'll help you decide, even if the answer is a different machine.

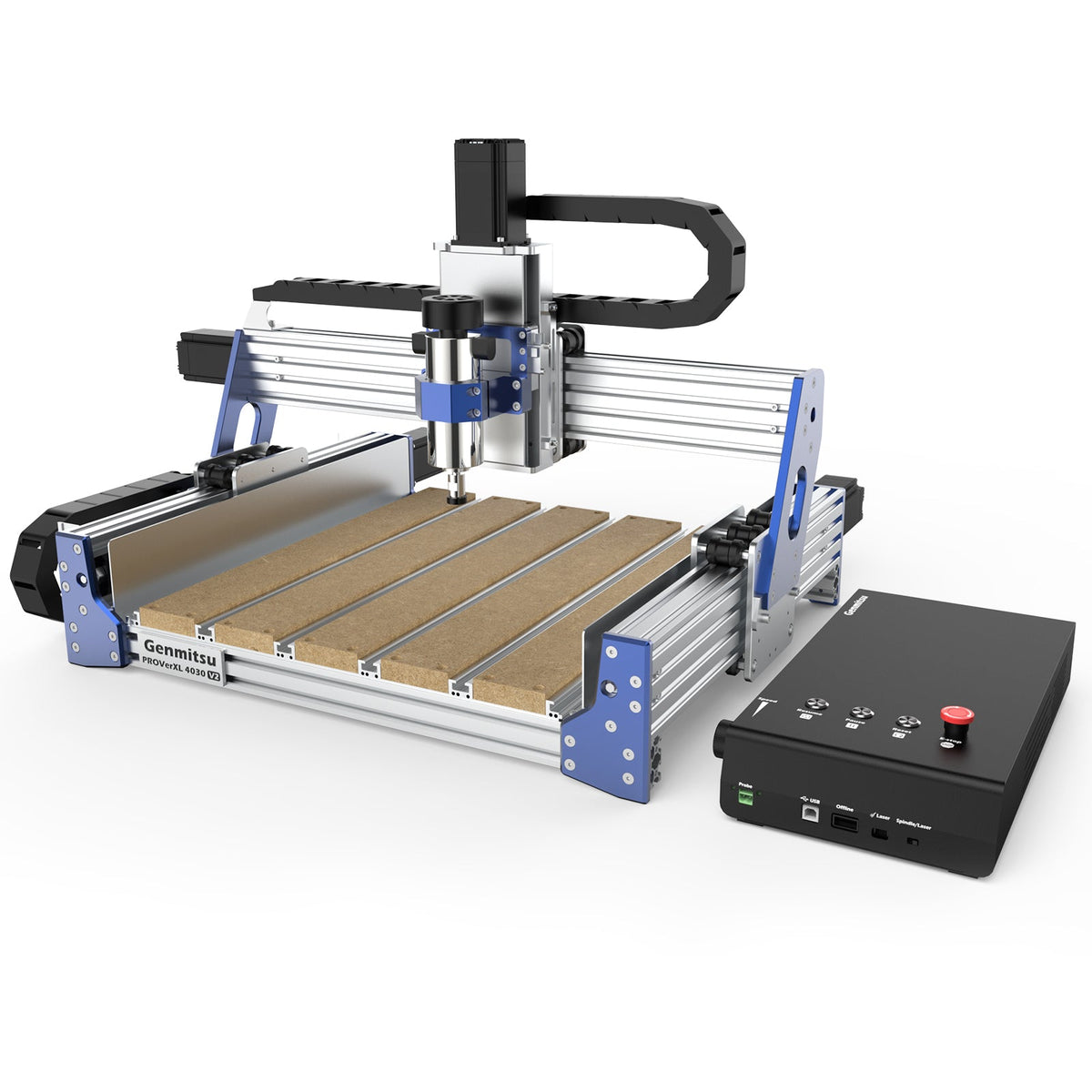

Genmitsu PROVerXL 4030 V2 CNC Router

Desktop CNC Router — Machine Only

Looking for a versatile and affordable CNC router machine?
Whether you are new to the hobby or want to increase your workshops capabilities the all new Genmitsu PROVerXL 4030 V2, now with upgraded features that take precision, versatility, and affordability to a whole new level!
With a running speed of up to 5000 mm/min, the Genmitsu PROVerXL 4030 V2 CNC Router Machine allows you to complete your projects faster and more efficiently than ever before.

Upgraded Closed-Loop Motors and Ball Screws

Say goodbye to step loss and enjoy lower noise levels with the new closed-loop motor, and enjoy increased precision and accuracy with the 1204 ball screw. The improved Z-axis structure provides added stability, while the added eccentric nut adjustment for the roller offers greater flexibility and control over the machine's movement.

Wide Range of Materials

The T-slot hybrid table can help holding materials during CNC machining or laser engraving. Cut and carve an irregularly shaped or size of a variety of materials such as wood, plastics, and soft metals, and enjoy a working area of 400mm x 300mm x 110mm, making it suitable for small to medium-sized projects.

GRBL-Based Control Box and Improved Chassis Design

Operate the machine with ease via USB interface using software such as Candle or Universal Gcode Sender thanks to the GRBL-based control board. The sturdy and improved chassis design ensures long-lasting and reliable performance with minimal maintenance requirements.

Start Making Today!

With precision, versatility, and affordability at its core, the Genmitsu PROVerXL 4030 V2 CNC router machine is the perfect tool for hobbyists, DIY enthusiasts, and small business owners alike. Upgrade your machine today and start bringing your ideas to life with ease and precision!

CNC Rotary Axis Module is available

Upgrade your 4030V2 CNC with the Genmitsu Rotary Kit for 360° carving and full rotary 3D/2D designs, enabling complex projects that traditional 3-axis machines can't achieve.

Technical Specifications

Model	PROVerXL 4030	PROVerXL 4030 V2	PROVerXL 6050 Plus
Working Area	400 x 300 x 110 mm	400 x 300 x 110 mm	600 x 500 x 115 mm
	15.8 x 11.8 x 4.3 inches	15.8 x 11.8 x 4.3 inches	23.6 x 19.7 x 4.5 inches
Overall Dimensions	776 x 641 x 580 mm	742 x 489 x 605 mm	992 x 782 x 641 mm
	30.6 x 25.2 x 22.8 inches	29.2 x 23.8 x 19.3 inches	39.1 x 30.7 x 25.2 inches
Assembly Time	30-45 min	25-30 min	25-30 min
Extension Kit	6060 & 1010 Extension Kit	6060 & 1313 Extension Kit	Coming Soon
X, Y, Z Axis Stepper Motor	NEMA23 57mm, Open-loop	NEMA23 76mm, Closed-loop	NEMA23 3.1N-100mm, Open-loop
Optional Upgraded Stepper Motor	DM542 NEMA23 112mm Stepper Motor Set Closed-Loop Stepper Motor	/	/
Drive System	Leadscrew	1204 Ballscrew	Dual Linear Rails & Single Y-axis
Frame & Structure	Metal Frame & MDF Spoilboard	Metal Frame & Hybrid Spoilboard	Metal Frame & Hybrid Spoilboard
Control Board Compatibility	GRBL 1.1h	GRBL 1.1h	GRBL 1.1h
Max Speed	2000 mm/min	5000 mm/min	2000 mm/min
Running Accuracy	≤ ±0.10 mm	Circular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm	≤ ±0.05 mm
Repositioning Accuracy	≤ ±0.10 mm	≤ ±0.05 mm	≤ ±0.05 mm
Stepper Driver	TB6560	WSD6056DN56	TB6560
Spindle Rating	300W 12000 RPM	MAX 400W 10000 RPM	300W 12000 RPM
Spindle Voltage	DC, 0-48V	DC, 0-48V	DC, 0-48V
Power Supply	48V 7A & 24V 8A	48V 7A & 24V 8A	48V 7A & 24V 8A
CAM Software	GRBL Firmware, e.g. UGS, Candle	GRBL Firmware, e.g. UGS, Candle	GRBL Firmware, e.g. UGS, Candle

What's In The Box

Package:

1x X Axis & Motor
1x XZ Axis & Spindle & Motor
1x XY-Axis Base with Motors
1x Coupler
2x Dust baffles
2x Drag Chain & Mounts
1x Extra φ65mm Holder
1x Collet
2x Milling bits 10pcs (Flat engraving, slot drills)
4x Clamps
1x Z-probe
1x USB drive
1x Fuse tube
1x Tools box with screws & wrenches
1x User Manual

FAQ's

Frequently Asked Questions

What is the working area of the PROVerXL 4030 V2?
The PROVerXL 4030 V2 provides a 400 × 300 × 110 mm (15.8 × 11.8 × 4.3 in) working area, making it well suited to a wide range of desktop CNC projects.

What makes the 4030 V2 different from the original 4030?
The 4030 V2 features an upgraded motion system with 1204 ball screws and NEMA 23 closed-loop stepper motors, providing improved motion control and positioning performance.

What is the maximum operating speed of the 4030 V2?
The PROVerXL 4030 V2 can operate at speeds of up to 5,000 mm/min. SainSmart lists circular running accuracy of ≤ ±0.05 mm and rectangular running accuracy of ≤ ±0.02 mm.

Can the 4030 V2 use the original 4030 expansion kits?
No. The original 6060/1010 expansion parts are not compatible with the 4030 V2 due to differences in its ball-screw and motor design. Dedicated 6060 and 1313 expansion kits are available for the V2.

Does the 4030 V2 support a rotary axis?
Yes. A compatible CNC Rotary Axis Module is available for the 4030 V2, allowing you to create cylindrical and rotary carving projects.

20 Milling Bits:

10 from the C08 Set (0.8-3.0mm)

10 x Nano Blue Coat End Mill CNC Router Bits, Shank Diameter: 3.175mm

(Different cutting edge diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm)

10 from the 70V30 Set

10 x V-Shaped Nano Blue Coat Engraving Bits

Cutting Angle: 30 Degree

Shank Diameter: 3.175mm

Carveco Maker software compatibility notice:

Please note that while the machine is compatible with both Windows and macOS, the Carveco Maker software subscription service only supports the Windows operating system.
If you are using macOS, please ensure that you can run a Windows environment through virtual machine software or other solutions before making a purchase, to ensure seamless use of the PROVerXL 4030 V2 CNC milling machine.

About using 10W laser module:

If you need to use a 10W laser, please contact us for the adapter cable replacement.
