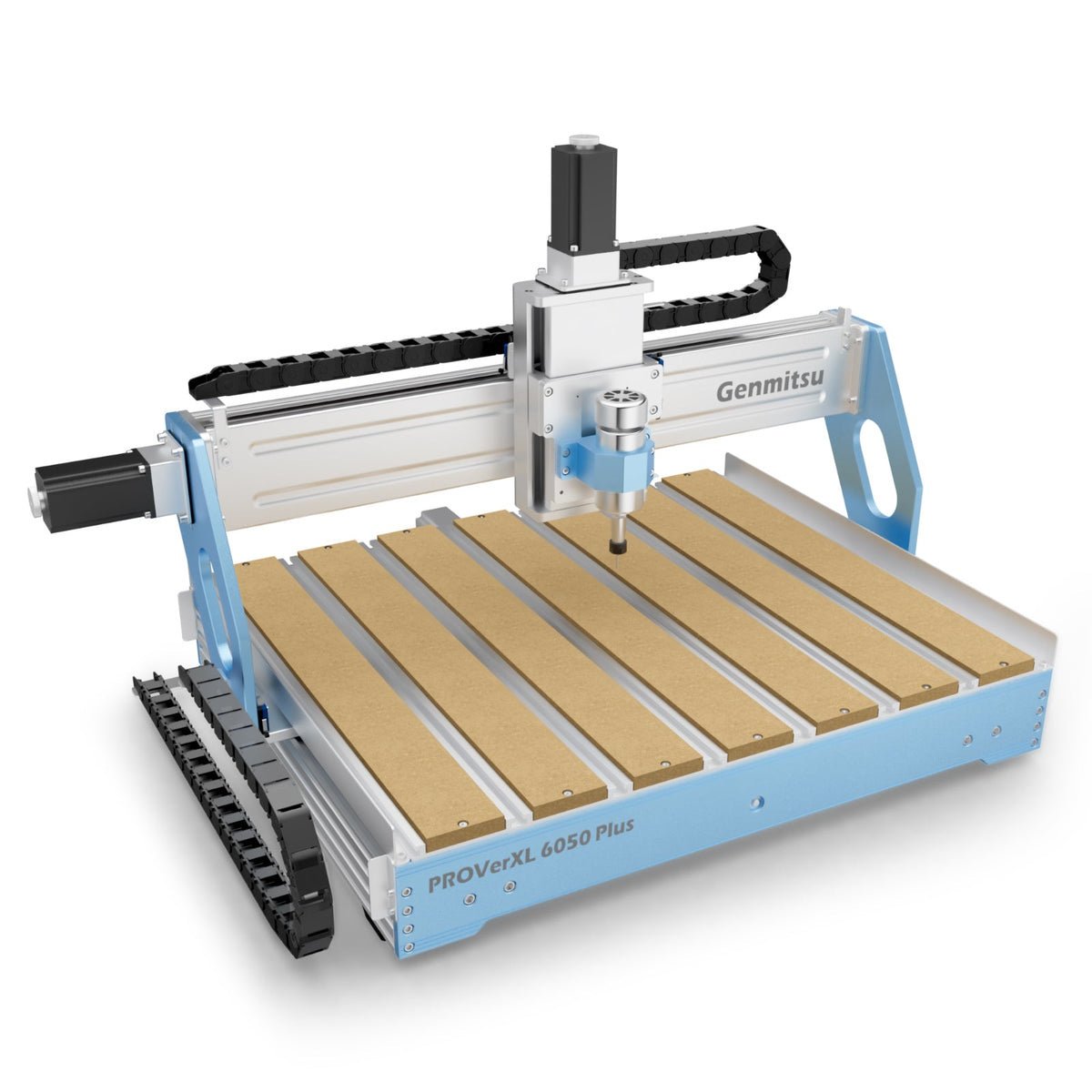

Genmitsu PROVerXL 6050 Plus CNC Router (Machine + 300W Spindle)

Genmitsu PROVerXL 6050 Plus CNC Router

CNC Router — Machine + 300W Spindle

Same Budget, Bigger Size.

Larger working area (23.62" x 19.69" x 4.53"), 300W spindle motor and all metal re-designed frame, and motion-system. With the large engraving area and added safety features, the PROVerXL 6050 Plus is a cost-effective and efficient choice for starting your small business or improving your DIY crafts.

Easy to set up, save more time on your projects.

The pre-assembled module of X, Y, Z axis and wires dramatically reduces effort of assembly, allowing you to start carving your projects in less time.

Dual Linear rail and lead screw structure are very rigid and greatly improve the engraving accuracy and overall strength, while also reducing noise during operation. The ProverXL 6050 Plus includes an extra 65mm diameter spindle holder for future upgrades. It's a powerhouse stable enough to engrave, carve and drill most of materials, like aluminum, copper, POM, carbon filber, wood, resin, PCB, Nylon, MDF and more.

Upgraded Nema23 Stepper Motor

The 3.1Nm Torque 100mm-Length stepper motor rubber gasket could effectively reduce vibration when the motors are running.

Upgraded Z-axis & Integrated T-slot Hybrid Table

New Z-axis reduce shaking and improve engraving accuracy and bring a improvement up to 80% stability of engraving.

Durable aluminum T-track grid extrusions that support the MDF Spoil Boards. Compatible with a wide variety of clamp sets and easily configurable with add-ons and easy maintenance, with replacement of individual MDF spoil boards when needed.

Up to 50% of PROVerXL users are Making molds or Art-crafting for selling.

Some people are woodworking enthusiasts, with the help of CNC to solve many manual operations, some people are used to make small gifts to sell, some people love to make and show their friends what they do. Join our community

Technical Specifications

Model	PROVerXL 4030	PROVerXL 4030 V2	PROVerXL 6050 Plus
Working Area	400 x 300 x 110 mm	400 x 300 x 110 mm	600 x 500 x 115 mm
	15.8 x 11.8 x 4.3 inches	15.8 x 11.8 x 4.3 inches	23.6 x 19.7 x 4.5 inches
Overall Dimensions	776 x 641 x 580 mm	742 x 489 x 605 mm	992 x 782 x 641 mm
	30.6 x 25.2 x 22.8 inches	29.2 x 23.8 x 19.3 inches	39.1 x 30.7 x 25.2 inches
Assembly Time	30-45 min	25-30 min	25-30 min
Extension Kit	6060 & 1010 Extension Kit	6060 & 1313 Extension Kit	Pending
X, Y, Z Axis Stepper Motor	NEMA23 57mm, Open-loop	NEMA23 76mm, Closed-loop	NEMA23 3.1N-100mm, Open-loop
Optional Upgraded Stepper Motor	DM542 NEMA23 112mm Stepper Motor Set Closed-Loop Stepper Motor	/	/
Drive System	Leadscrew	1204 Ballscrew	Dual Linear Rails & Single Y-axis
Frame & Structure	Metal Frame & MDF Spoilboard	Metal Frame & Hybrid Spoilboard	Metal Frame & Hybrid Spoilboard
Control Board Compatibility	GRBL 1.1h	GRBL 1.1h	GRBL 1.1h
Max Speed	2000 mm/min	5000 mm/min	2000 mm/min
Running Accuracy	≤ ±0.10 mm	Circular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm	≤ ±0.05 mm
Repositioning Accuracy	≤ ±0.10 mm	≤ ±0.05 mm	≤ ±0.05 mm
Stepper Driver	TB6560	WSD6056DN56	TB6560
Spindle Rating	300W 12000 RPM	MAX 400W 10000 RPM	300W 12000 RPM
Spindle Voltage	DC, 0-48V	DC, 0-48V	DC, 0-48V
Power Supply	48V 7A & 24V 8A	48V 7A & 24V 8A	48V 7A & 24V 8A
CAM Software	GRBL Firmware, e.g. UGS, Candle	GRBL Firmware, e.g. UGS, Candle	GRBL Firmware, e.g. UGS, Candle

FAQ's

Frequently Asked Questions

What is the working area of the PROVerXL 6050 Plus?
The PROVerXL 6050 Plus provides a 600 × 500 × 115 mm (23.6 × 19.7 × 4.5 in) working area, offering considerably more workspace than the smaller 4030-series machines.

What spindle is included with this configuration?
This configuration includes a 300W spindle rated at 12,000 RPM, providing cutting and engraving capability for a variety of materials.

What type of motion system does the 6050 Plus use?
The machine uses dual linear rails and a leadscrew-based motion system, along with an all-metal frame and hybrid spoilboard for a rigid and stable working platform.

How much assembly is required for the PROVerXL 6050 Plus?
The X, Y, and Z axis modules and wiring come pre-assembled, helping reduce setup time. SainSmart estimates approximately 25–30 minutes for assembly.

What materials can the PROVerXL 6050 Plus work with?
SainSmart lists materials including aluminum, copper, POM, carbon fiber, wood, resin, PCB, nylon, and MDF. Proper tooling and cutting parameters should be selected for each material.

10Pcs Milling Bits:

2 x End Mills: 2.5mm/3.175mm, 1/8'' Shank
2 x V-bits: 30°/15°, 0.1mm, 1/8'' Shank
2 x PCB Drill Bits: 1.5mm/2.0mm, 1/8'' Shank
2 x Ball Nose Spiral End Mills: 3.175x17mm, 2.0x10mm, 1/8'' Shank, 2-Flute
1 x Straight Router Bit: 1/8'' Shank, 2-Flute
1 x V-Groove Bit: 0.1mm 90°, 1/8'' Shank

Carveco Maker software compatibility notice:

Please note that while the machine is compatible with both Windows and macOS, the Carveco Maker software subscription service only supports the Windows operating system.

If you are using macOS, please ensure that you can run a Windows environment through virtual machine software or other solutions before making a purchase, to ensure seamless use of the PROVerXL 4030 V2 CNC milling machine. Please contact us for more details.
